Wearable Pocket Barcode Scanner - 2D iDC9607LW
Model : iDC9607LW - 2D Engine (RIOTEC AI3200+)
Q'ty :
• Simple Operation by LCD Screen
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use
iDC9607LW- Wearable 2D Pocket Barcode Scanner with DISPLAY.
Wearable pocket barcode scanner is designed for warehouse / logistic use.
iDC9607LW adopts RIOTEC AI3200+ 2D engine and its scanning performance is good enough. With it, operators can scan the barcodes easily than before.
(click the above picture to review its 360-degree product photo)
iDC9607LW has below different applications:

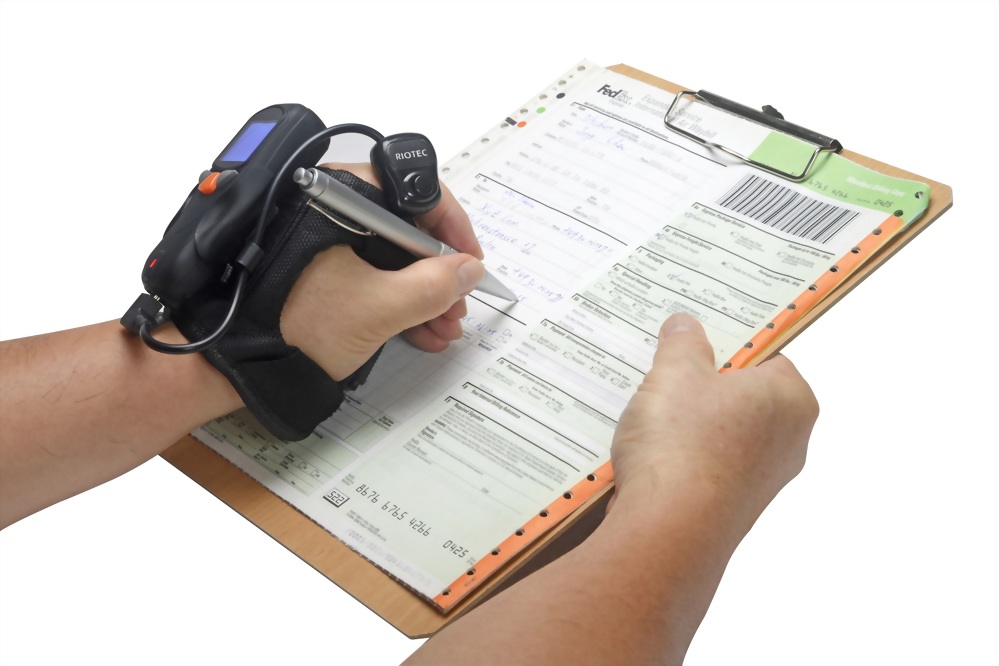

* work with wearable glove set
* use pocket barcode scanner separately
* stick pocket barcode scanner on back of tablet by holder & velcro
Different from other similar scanners, iDC9607LW has the below benefits:
* Pocket-size design: 100 x 43 x 27mm
• Simple Operation by LCD Screen
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use
|
Specifications : |
|
|
Model Name |
iDC9607LW
|
|
Description |
Wearable Pocket 2D Barcode Scanner
|
|
Engine |
RIOTEC AI3200+ 2D engine
|
|
Performance Characteristics | |
˙ |
Light Source
|
625±10 nm LED
|
˙ |
LCD Panel (with back Light) |
Dots: 128 x 64
Viewing Area: 32 x 25 mm |
˙ |
Depth of Field |
(20 mil Code 39): 600 mm |
˙ |
Sensor
|
CMOS (752×480 pixels)
|
˙ |
Best Resolution |
1D (CODE39) ≥ 4 mil |
˙ |
Print Contrast |
≧30%
|
˙ |
Reading angle |
Tilt: 360° / Pitch ±50° / Skew ±50°
|
˙ |
Indicators |
green/red LED & beeper
|
˙ |
Charge
|
Mini USB port
|
˙ |
Symbologies |
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,
GS1 Databar, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, MSI, UCC/EAN-128,Matrix2 of 5, Industrial 2 of 5, Code 11 2D: PDF417, Data Matrix ,QR Code, Micro QR code |
˙ |
Interface |
through Bluetooth
|
|
Electrical Characteristics |
|
˙ |
Input voltage |
5 V/DC ± 5%
|
˙ |
Current - operating |
350 mA
|
˙ |
Radio Range
|
BT Class 1 (70~100 m in open area, based on real operation environment)
|
˙ |
RF Frequency |
2.4 GHz
|
˙ |
Communication |
HID profile, SPP profile
|
˙ |
Battery Type |
3.7 V, 900 mAh Li-Ion battery
|
˙ |
Scans per charge |
more than 10,000 scans when fully charged
|
˙ |
Charge Time
|
4 ~ 5 hours
|
˙ |
Power cable |
Mini USB cable
|
˙ |
Memory capacity |
1MB (can save more than 65,000 sets EAN-13 barcodes)
|
|
Physical Characteristics |
|
˙ |
Dimension |
Scanner 100 X 43 X 27 mm (L * W * H)
|
˙ |
Weight |
Scanner 72 g +/- 5 g,
Glove + Holder + Ring Trigger Cable 60g +/- 2g |
|
Environment |
|
˙ |
Temperature-operation
|
0°C to 50°C
|
˙ |
Temperature-storage |
-10°C to 60°C
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
˙ |
4 mil Code 39 |
50 - 140 mm
|
˙ |
5 mil Code 39 |
50 - 160 mm
|
˙ |
13 mil UPC-A |
60 - 360 mm
|
˙ |
20 mil Code 39 |
100 - 600 mm
|
˙ |
6.67 mil PDF417 |
60 - 160 mm
|
˙ |
10 mil DataMatrix |
50 - 120 mm
|
˙ |
20 mil QR Code |
30 - 280 mm
|
