DC9262N 2D Wearable Barcode Scanner
Model : DC9262N ZEBRA SE2707
Q'ty :
˙ 2D Mini Mobile barcode scanners are designed for Android OTG
devices especially.
˙ DC9262N: Wearing form design frees operator's hands to move packages,
products or materials, helping to improve efficiency and productivity.
˙ Lightweight, ergonomically designed for easy operation
˙ With application, DC92xx series make Android OTG devices become data
collector economically.
devices especially.
˙ DC9262N: Wearing form design frees operator's hands to move packages,
products or materials, helping to improve efficiency and productivity.
˙ Lightweight, ergonomically designed for easy operation
˙ With application, DC92xx series make Android OTG devices become data
collector economically.
|
|
Specifications : |
|
|
|
Model Name |
DC9262N
|
|
|
Engine |
ZEBRA SE2707
|
|
|
Performance Characteristics | |
|
˙ |
Illumination Element
|
1 Hyper Red 660 nm LED
|
| ˙ |
Aiming LED |
610 nm LED
|
| ˙ |
Depth of field
|
1D (20mil Code 39 )：495 mm
2D(20mil DataMatrix) : 343 mm |
| ˙ |
Best resolution |
1D (5mil)：Code 39 |
| ˙ |
Sensor |
CMOS (640×400 pixels)
|
|
˙ |
Scan Angle |
Tilt: 360° / Pitch ±60° / Skew ±60°
|
|
˙ |
Interface |
Micro USB ( USB_HID ,USB Serial |
|
˙ |
Print contrast |
≥ 20% |
|
˙ |
Symbologies |
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, ISBN,Code 128, UCC/EAN-128, ISBT 128,Code 39,Code39 Full ASCII, Trioptic Code 39,Code 32 (Italian Pharma Code), Code 93 ,Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Codabar,MSI GS1 DataBar, PDF 417,MicroPDF417,Datamatrix,QR Code,Micro QR Code, Aztec,Composite, TLC-39, MaxiCode,Postal: US PostNet, US PlanetUK Postal, Australian Postal,Japan Postal, Dutch Postal (KIX) |
|
|
Electrical Characteristics |
|
|
˙ |
Input voltage |
Smart Phone / Tablet Power
|
|
˙ |
Current - operating |
340 mA
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension |
43 X 65 X 21 mm
(without cable) |
|
˙ |
Color of housing |
Black
|
|
˙ |
Weight |
42 g
|
|
|
Environment |
|
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity-operation |
5% to 95% relative humidity, non-condensing
|
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
|
˙ |
5 mil Code 39 |
54~ 162 mm
|
|
˙ |
5 mil Code 128 |
63~ 127 mm
|
|
˙ |
20 mil Code 39 |
50~ 495 mm
|
|
˙ |
100% UPCA |
50~ 317 mm
|
|
˙ |
6.6 mil PDF417 |
63~ 160 mm
|
|
˙ |
10 mil PDF417 |
45~ 228 mm |
|
˙ |
20 mil Data Matrix |
38~ 343 mm |
|
˙ |
20 mil QR Code |
38~ 279 mm |
Related Products
iDC9608KW 2D Wearable pocket barcode scanner
Model : iDC9608KW

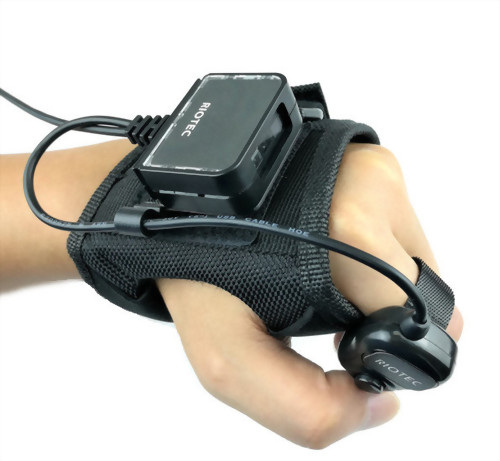

DC9263A 1D Wearable Barcode Scanner
