Wearable Pocket Barcode Scanner -2D iDC9608KW
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use

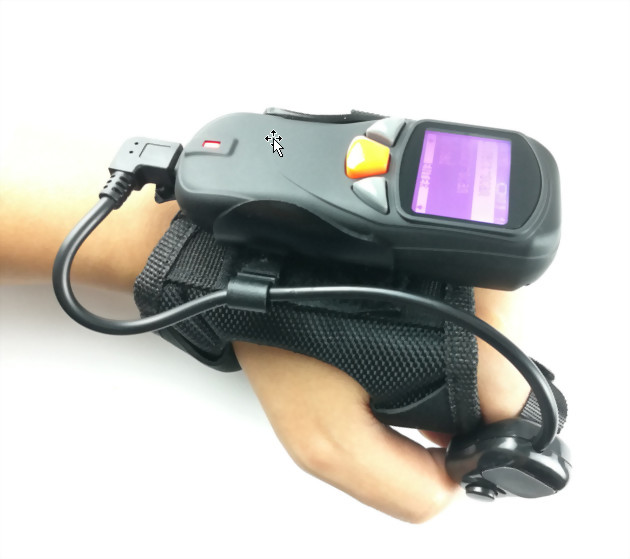

iDC9608KW- Wearable 2D Pocket Barcode Scanner with DISPLAY
Wearable pocket barcode scanner is designed for warehouse / logistic use.
iDC9608KW adopts Opticon MDI-4100 2D engine and its scanning performance is good enough. With it, operators can scan the barcodes easily than before.
iDC9608KW has below different applications:
* work with wearable glove set
* use pocket barcode scanner separately
* stick pocket barcode scanner on back of tablet by holder & velcro
Different from other similar scanners, iDC9608KW has the below benefits:
* Pocket-size design: 100 x 43 x 27mm
• Simple Operation by LCD Screen
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use
|
|
Scanner(Data Collector) Specifications： |
|
|
|
Model Name |
iDC9608KW
|
|
|
Description |
Wearable 2D Pocket Barcode Scanner
|
|
|
Engine |
Opticon MDI-4100 2D Engine
|
|
|
Performance Characteristics | |
|
˙ |
Illumination Element
|
White LED
|
|
˙ |
Aiming LED |
525nm (Green)
|
|
˙ |
LCD Panel (with back Light) |
Dots: 128 x 64
Viewing Area: 32 x 25 mm |
| ˙ |
Depth of Field
|
(13 mil) UPC-A：250 mm
|
| ˙ |
Sensor |
CMOS (640×480 pixels) |
|
˙ |
Best Resolution |
1D (CODE39): 5 mil
2D (PDF417): 6.7 mil |
|
˙ |
Print Contrast |
≧ 20%
|
|
˙ |
Scan speed |
100 frame /sec
|
| ˙ |
Reading angle
|
Tilt: 360° / Pitch ±65° / Skew ±65°
|
|
˙ |
Indicators |
green/red LED & beeper
|
|
˙ |
Charge |
Mini USB port |
|
˙ |
Symbologies |
1D: UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13,
EAN-13 Add-on, EAN-8,EAN-8 Add-on, JAN-8, JAN-13,
Code 39, Tri-Optic, Codabar (NW-7), Industrial 2 of 5,
Interleaved 2 of 5, S-Code, Code 128, Code 93, IATA,
MSI/Plessey, UK/Plessey, Telepen, Code 11, Matrix 2 of 5,
Chinese Post,Matrix 2 of 5, Korean Postal Authority code,
Intelligent Mail Barcode, POSTNET, JPN (Customer Barcode),
GS1 DataBar,GS1 DataBar Limited, GS1 DataBar Expanded,
Composite GS1 DataBar, Composite GS1-128,
Composite EAN,Composite UPC
2D: PDF417, MicroPDF417, Codablock F, QR Code,
MicroQR Code, Data Matrix (ECC 000-140 / ECC 200),
Aztec Code, Aztec Runes, Chinese-sensible code, Maxi Code
|
|
|
Electrical Characteristics |
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
|
˙ |
Current - operating |
510 mA
|
|
˙ |
Radio Range
|
BT Class 1 (70~100 m in open area, based on real operation environment)
|
|
˙ |
RF Frequency |
2.4GHz
|
|
˙ |
Communication |
HID profile, SPP profile
|
|
˙ |
Battery Type |
3.7V 900mAh Li-Ion battery
|
|
˙ |
Scans per charge |
more than 10,000 scans when fully charged
|
|
˙ |
Charge Time
|
4 ~ 5 hours
|
|
˙ |
Power cable |
Mini USB cable
|
|
˙ |
Memory capacity |
1MB (can save more than 65,000 sets EAN-13 barcodes)
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension |
Scanner 100 X 43 X 27 mm (L * W * H)
|
|
˙ |
Weight |
Scanner 72 g +/- 5 g,
Glove + Holder + Ring Trigger Cable 60g +/- 2g |
|
|
User Environment |
|
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing
|
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
| ˙ |
10 mil Code 39 |
65 ~ 210 mm
|
| ˙ |
13 mil UPC |
65 ~ 250 mm
|
|
˙ |
6.7 mil PDF417 |
60 ~ 135 mm
|
|
˙ |
10 mil PDF417 |
55 ~ 185 mm
|
|
˙ |
6.7 mil QR Code |
75 ~ 95 mm
|
|
˙ |
15 mil QR Code |
30 ~ 215 mm
|
|
˙ |
10 mil Data Matrix |
60 ~ 150 mm |
|
˙ |
7.9 mil Code 128 |
80 ~ 165 mm |
