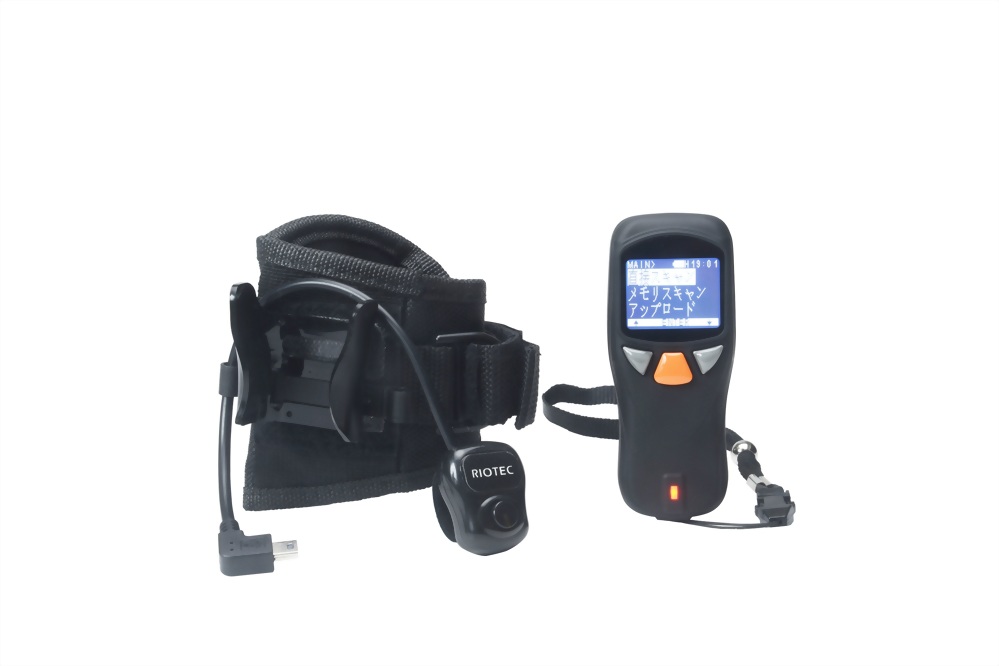

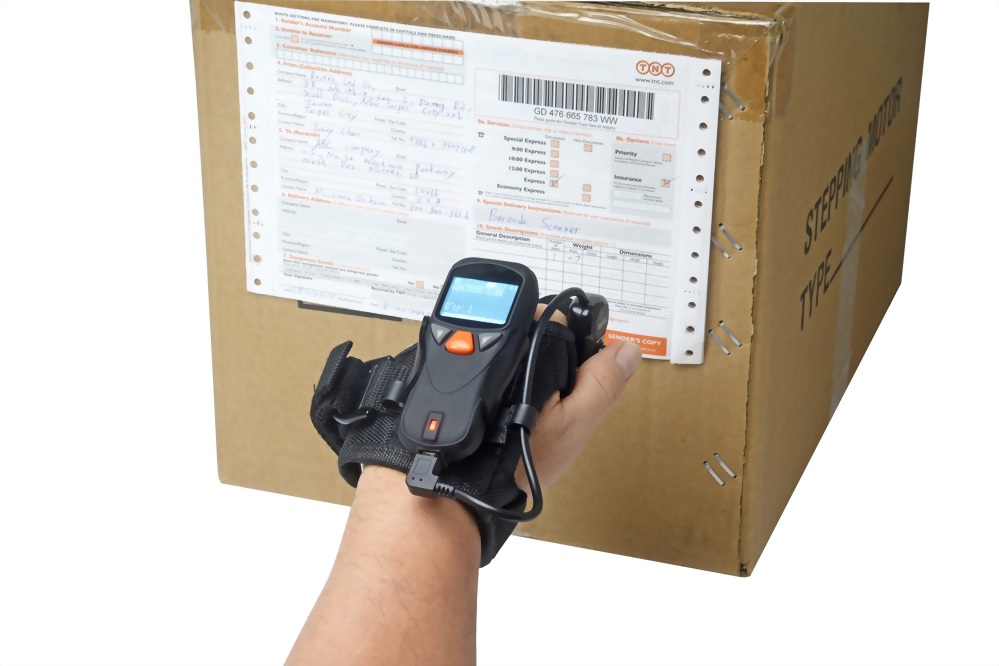

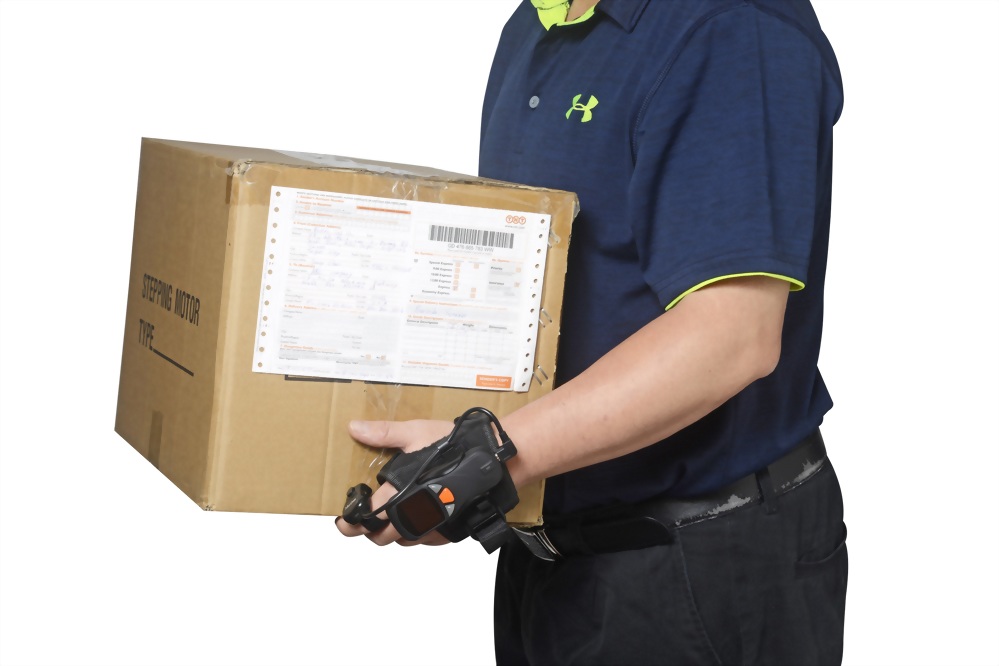

iDC9602NW (Wearable pocket barcode scanner)
Model : iDC9602NW(2D Spec)
Q'ty :
˙ Pocket-size design: 100 x 43 x 27mm
˙ Bluetooth: BT Class 1
˙ Supports Apple iOS, Android, and Windows devices through BT
˙ Equipped with 1MB memory which can store
more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch,
its left button can
raise & lower on-screen keyboard
˙ Charging: via USB cable
˙ Bluetooth: BT Class 1
˙ Supports Apple iOS, Android, and Windows devices through BT
˙ Equipped with 1MB memory which can store
more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch,
its left button can
raise & lower on-screen keyboard
˙ Charging: via USB cable
|
|
Scanner(Data Collector) Specifications： |
|
|
|
Model Name |
iDC9602NW
|
|
|
Description |
Bluetooth Barcode Scanner
|
|
|
Engine |
ZEBRA SE2707
|
|
|
Performance Characteristics | |
|
˙ |
Illumination Element
|
1 Hyper Red 660 nm LED
|
|
˙ |
Aiming LED |
610 nm LED
|
|
˙ |
LCD Panel (with back Light) |
Dots: 128 x 64
Viewing Area: 32 x 25 mm |
| ˙ |
Depth of Field
|
1D (20mil Code 39 )：495 mm
2D(20mil DataMatrix) : 343 mm |
| ˙ |
Sensor |
CMOS (640×480 pixels) |
|
˙ |
Best Resolution |
1D (5mil)：Code 39
2D (6.67mil)：PDF417 |
|
˙ |
Print Contrast |
≥ 20%
|
|
˙ |
Scan Speed |
60 frame /sec
|
| ˙ |
Reading angle
|
Tilt: 360° / Pitch ±60° / Skew ±60°
|
|
˙ |
Indicators |
green/red LED & beeper
|
|
˙ |
Symbologies |
UPC-A,UPC-E,UPC-E1,EAN-8,EAN-13,ISBN,Code 128,
UCC/EAN-128,ISBT 128,Code 39,Code39 Full ASCII,
Trioptic Code 39,Code 32 (Italian Pharma Code),
Code 93,Code 11,Interleaved 2 of 5,Discrete 2 of 5,
Chinese 2 of 5,Matrix 2 of 5,Codabar,MSI GS1 DataBar,
PDF 417,MicroPDF417,Datamatrix,QR Code,Micro QR Code,
Aztec,Composite,TLC-39,MaxiCode,Postal: US PostNet,
US Planet, UK Postal,Australian Postal,Japan Postal,
Dutch Postal (KIX)
|
|
˙ |
Interface |
through BT |
|
|
Electrical Characteristics |
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
|
˙ |
Current - operating |
580 mA max
|
|
˙ |
Radio Range
|
BT Class 1 (70~100m in open area, based on real operation environment)
|
|
˙ |
RF Frequency |
2.4GHz
|
|
˙ |
Communication |
HID profile, SPP profile
|
|
˙ |
Battery Type |
3.7V 900mAh Li-Ion battery
|
|
˙ |
Scans per charge |
more than 10,000 scans when fully charged
|
|
˙ |
Charge Time
|
4 ~ 5 hours
|
|
˙ |
Power cable |
Mini USB cable
|
|
˙ |
Memory capacity |
1MB (can save 65,000 sets more EAN 13 barcode)
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension |
Scanner 100 X 43 X 27 mm (L * W * H)
|
|
˙ |
Weight |
Scanner 72 g +/- 5 g, Glove + Holder + Ring Trigger Cable 56g +/- 2g
|
|
|
User Environment |
|
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing
|
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
| ˙ |
5 mil Code 39 |
54~ 162 mm
|
| ˙ |
5 mil Code 128 |
63~ 127 mm
|
|
˙ |
20 mil Code 39 |
50~ 495 mm
|
|
˙ |
100% UPCA |
50~ 317 mm
|
|
˙ |
6.67 mil PDF417 |
63~ 160 mm
|
|
˙ |
10 mil PDF417 |
45~ 228 mm
|
|
˙ |
20 mil Data Matrix |
38~ 343 mm |
|
˙ |
20 mil QR Code |
38~ 279 mm |
