Wearable Pocket Barcode Scanner

Wearable Pocket Barcode Scanner - 2D iDC9600KW

Model : iDC9600KW - 2D Engine (RIOTEC AI3220)

Q'ty :

Wearable Pocket 2D Barcode Scanner, RIOTEC iDC9600KW

• Simple Operation by LCD Screen
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use

Specifications
Description

iDC9600KW- Wearable 2D Pocket Barcode Scanner with DISPLAY

Wearable pocket barcode scanner is designed for warehouse / logistic use.
iDC9600KW adopts RIOTEC AI3220 2D engine and its scanning performance is good enough. With it, operators can scan the barcodes easily than before.

iDC9600KW has below different applications:

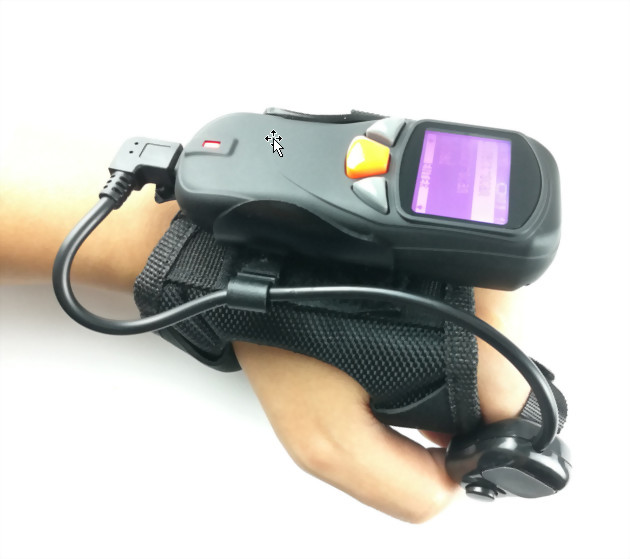

* work with wearable glove set
* use pocket barcode scanner separately

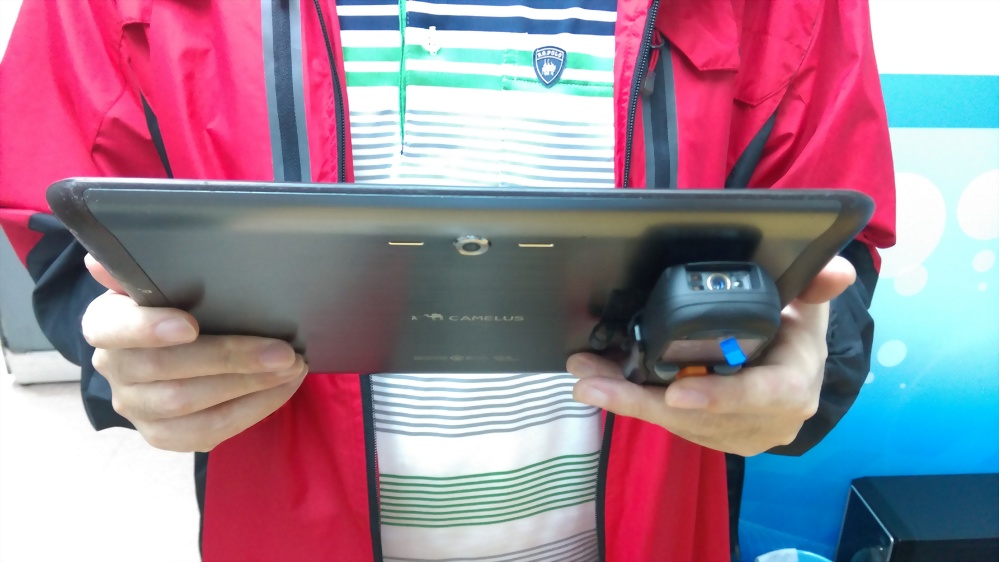

* stick pocket barcode scanner on back of tablet by holder & velcro

Different from other similar scanners, iDC9600KW has the below benefits:
* Pocket-size design: 100 x 43 x 27mm
• Simple Operation by LCD Screen
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 10,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use

	Scanner(Data Collector) Specifications：
	Model Name	iDC9600KW
	Description	Wearable 2D Pocket Barcode Scanner with DISPLAY
	Engine	RIOTEC AI3220 2D engine
	Performance Characteristics
˙	Light Source	White LED
˙	Aiming LED	Red Light : 625nm ± 3nm
˙	LCD Panel (with back Light)	Dots: 128 x 64 Viewing Area: 32 x 25 mm
˙	Depth of Field	13 mil EAN13: 180 mm 13 mil PDF417: 170 mm
˙	Best Resolution	4 mil Code 39 13 mil DataMatrix
˙	Print Contrast	≥ 30%
˙	Read Angle	Title: 360° / Pitch: ±50° / Skew: ±50°
˙	Indicators	green/red LED & beeper
˙	Charge	Mini USB port
˙	Symbologies	EAN-8，EAN-13，UPC-A，UPC-E，Code 39， Code 93，Code 128，Codabar，Interleave 2 of 5，GS1-128 ISBN，MSI，GS1 Databar，PDF417， QR Code，DataMatrix，Aztec
	Electrical Characteristics
˙	Input voltage	5 V/DC ± 5%
˙	Current - operating	550mA
˙	Radio Range	BT Class 1 (70~100 m in open area, based on real operation environment)
˙	RF Frequency	2.4 GHz
˙	Communication	HID profile, SPP profile
˙	Battery Type	3.7V 900mAh Li-Ion battery
˙	Scans per charge	more than 10,000 scans when fully charged
˙	Charge Time	4 ~ 5 hours
˙	Power cable	Mini USB cable
˙	Memory capacity	1MB (can save more than 65,000 sets EAN-13 barcodes)
	Physical Characteristics
˙	Dimension	Scanner 100 X 43 X 27 mm (L * W * H)
˙	Weight	Scanner: 72 g +/- 5 g, Glove + Holder + Ring Trigger Cable: 60g +/- 2g
	User Environment
˙	Temperature-operation	0°C to 50°C
˙	Temperature-storage	-10°C to 60°C
˙	Humidity	5% to 95% relative humidity, non-condensing
	Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. )
˙	4 mil Code 39	60mm ~ 80mm
˙	5 mil Code 39	60mm ~ 90mm
˙	13 mil EAN 13	60mm ~ 180mm
˙	13 mil PDF417	40mm ~ 170mm
˙	13 mil DataMatrix	30mm ~ 90mm
˙	13 mil QR Code	30mm ~ 150mm
