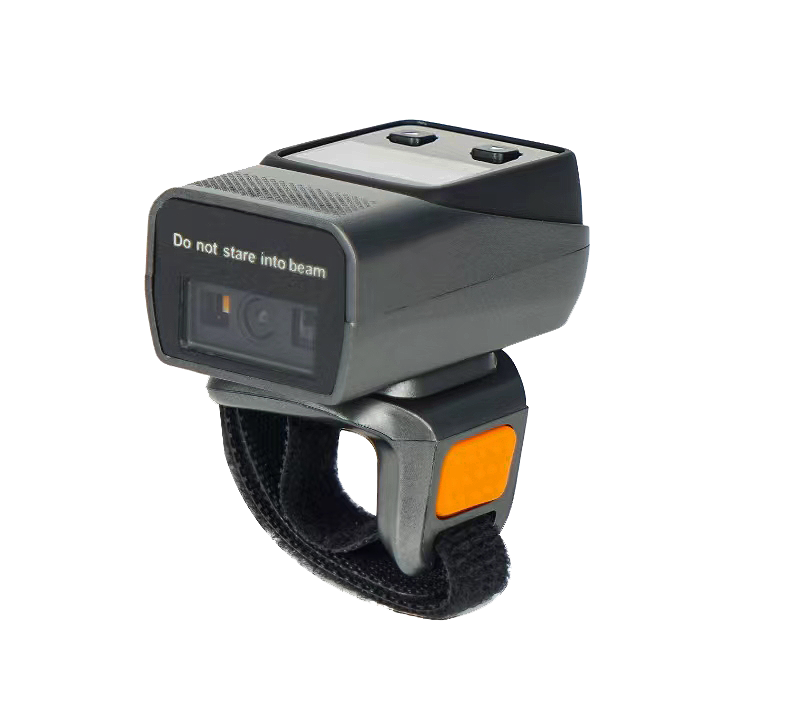

The Wearable Ring Scanner is a compact, portable barcode scanner designed for convenience and efficiency. With its innovative finger-ring structure, it provides hands-free scanning, making it ideal for environments where speed and mobility are essential, such as stores, warehouses, and logistics centers. It uses wireless Bluetooth 2.4G technology, ensuring seamless connectivity with multiple devices.

Product Features

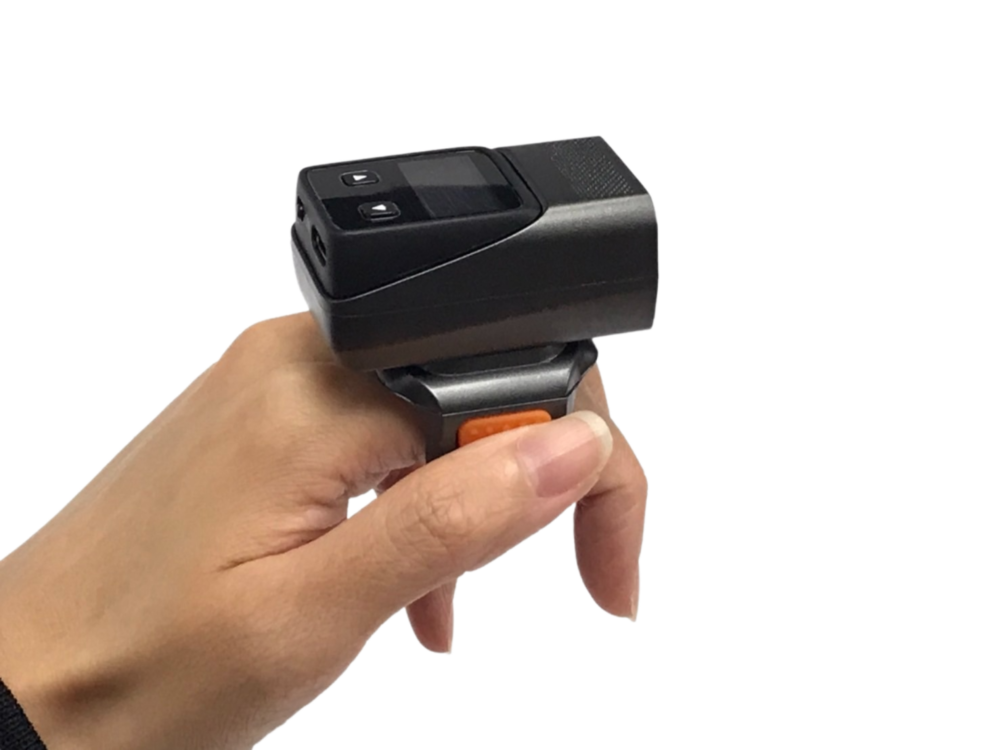

Ergonomic Design:

Easily worn on the finger, this scanner is simple to install and remove, providing maximum comfort during extended use.

Auto Bluetooth Activation:

Bluetooth connects automatically, eliminating the need for extra setup steps.

Lightweight:

Weighing only 42g, it enhances portability and reduces user fatigue, allowing for continuous use without strain.

3-in-1 Connection:

Supports Bluetooth, 2.4G wireless, and USB cable connections for versatile usage.

Long Battery Life:

With a built-in 500mAh battery, the scanner operates up to 10 hours on a single charge, ensuring prolonged performance in demanding environments.

Versatile Scanning:

Capable of scanning most 1D and 2D barcodes, including on screens, making it highly adaptable.

Ample Memory:

Equipped with 16M flash memory for efficient data storage.

Practical and Comfortable:

Its ergonomic design ensures comfort and ease, ideal for continuous use in fast-paced work environments.

Dimensions: 52mm*48mm*32mm
Material: ABS+PC
Weight: 42g(with battery)
Color: Silver gray

Light Sources: Red LED
Sensor: CMOS (752 x640)
Scan speed: 200 times/s
Resolution: 640*480
Processor/Memory: ARM 32 /16M Flash
Precision: 4mil(Code 39, PCS 0.9)
Scan Mode: Trig Mode, Comman Mode, Continue Mode, Auto Sensor Mode
Depth of scan field: 13mil EAN 13 more than 15cm
Screen: TFT Color screen
Contrast: >20%
Error Rate: 1/5million
Bluetooth: Bluetooth Classs 4.2
Interface: USB HID Keyboard/ USB COM
Indication: Beep, LED, Vibration
Wireless transmission distance: Bluetooth: 30 meters   2.4G: 80 meters
Support OS: Microsoft Windows XP/7/8/10, Mobile6/Wince, Android, IOS, Linux

Symbologies:
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Code32, Codabar(NW-7), Plessey, MSI Plessey RSS, China Post.
2D: QR code, Data Matrix, PDF417, Aztec code, Maxi Code.

Operating Temperature: -10℃ ~50℃
Storage Temperature: -10℃~50℃
Relative Humidity: 5%~95% RH（Non-condensing）
Ambient lighting: 0~80000LUX
ESD Protection: Functional after 15 KV discharge
Environmental Sealing: IP42
Drop/Shock Resistance: Withstands multiple times 2 meters drops to concrete

Working Voltage: DC5V±5%
Working Current: 160mA
Standby Current: <20uA
Lithium Battery: 500mAh
Charging time: 2H
Cables: USB cable (type C)
Max 14000 scan /full charge

This Wearable Ring Scanner is perfect for retail, warehouse management, logistics, and inventory control. It enhances productivity and streamlines barcode scanning processes, providing workers with the flexibility and mobility they need in dynamic environments.
