Fixed Mount Barcode Scanner - 2D FS5022JW
* Discontinued
Fixed-mount scanner is designed for ATM/KIOSK.
* Adopts Zebra SE3300WA 2D engine
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232
Fixed-mount scanner is designed for ATM/KIOSK.
* Adopts Zebra SE3300WA 2D engine
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232

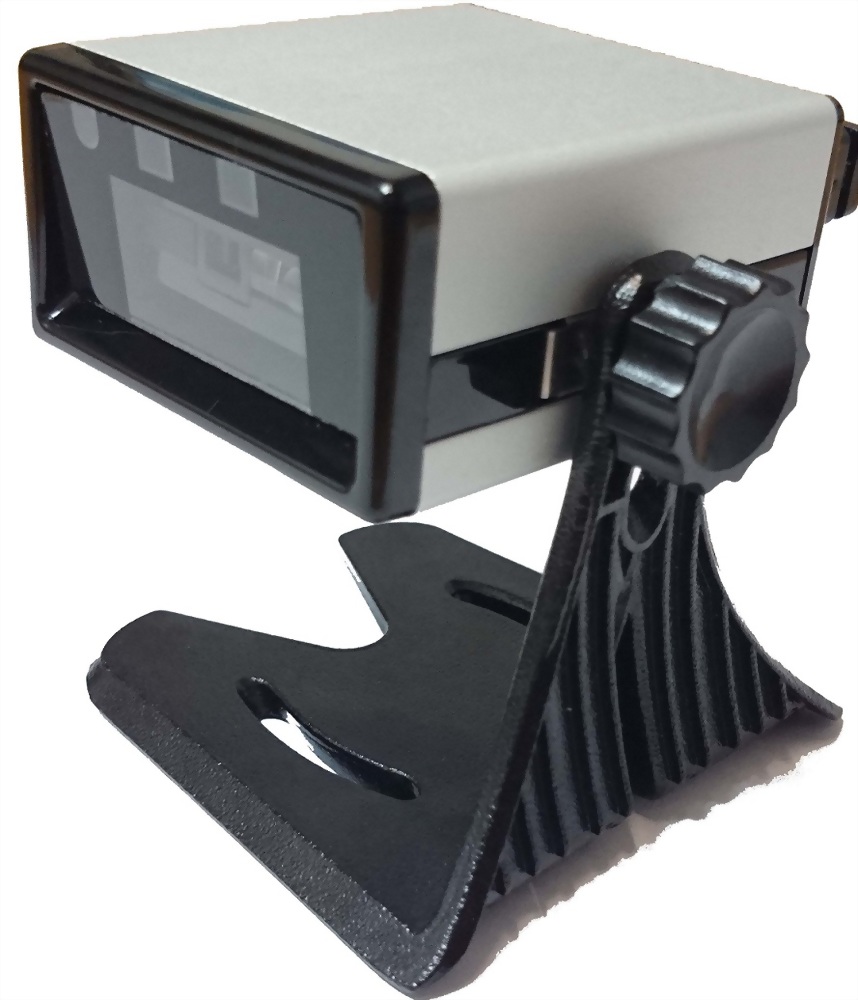

FS5022JW- 2D Fixed-mount barcode scanner
FS5022JW, Fixed-mount 2D barcode scanner, is designed for ATM, KIOSK, Self-service machine use. User can install FS5022JW into their device easily by screws or design the bracket to fix it at the correct location.
Its auto-sensing function can activate the scanning line to read barcodes automatically. This way can raise the working efficiency and reduce the labor cost.
Product advantages
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232
This product has been discontinued. Please explore our other related products or contact us for assistance in selecting a suitable model.
|
|
Specifications : |
|
|
|
Model Name |
FS5022JW
|
|
|
Description |
2D Fixed-mount barcode scanner
|
|
|
Engine |
ZEBRA SE3300WA 2D Engine
|
|
|
Performance Characteristics | |
| ˙ |
Light source
|
617nm, dot optical power: 0.19mW typical
|
|
˙ |
Illumination Element |
2 x 625 nm LEDs |
| ˙ |
Depth of field |
1D (100% UPC-A): 335 mm
2D (15 mil PDF417): 272 mm |
|
˙ |
Scan speed |
60 frame /sec
|
| ˙ |
Sensor
|
CMOS (752×480 pixels)
|
|
˙ |
Best resolution |
1D (5mil)：Code 39
2D (6.67mil)：PDF417 |
| ˙ |
Print contrast |
≥ 25%
|
|
˙ |
Reading angle |
Roll: 360° / Pitch: ±60° / Skew ±60°
|
|
˙ |
Indicators |
LED & beeper
|
|
˙ |
Auto-sensing |
Up to 200 mm
|
|
˙
|
Interface
|
USB HID, USB Serial (by request), RS232 (by request)
|
|
˙ |
Symbologies |
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, ISBN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Code39 Full ASCII, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Codabar, MSI GS1 DataBar, PDF 417, Micro PDF417, Datamatrix, QR Code, Micro QR Code, Aztec, Composite, TLC-39, MaxiCode, Postal: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)
|
|
|
Electrical Characteristics
|
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
|
˙ |
Current - operating |
460 mA
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension (W x D x H) |
54 x 60 x 30 mm
|
|
˙ |
Weight |
182 g +/- 5 g (with cable and stand)
|
|
˙ |
Case material |
Aluminum & ABS plastic
|
|
|
Environment |
|
|
˙
|
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity-operation |
5% to 95% relative humidity, non-condensing
|
|
|
Ambient Light |
Maximum 86100Lux. (direct sunlight)
|
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
| ˙ |
5 mil Code 39 |
43 ~ 177 mm
|
| ˙ |
100% UPC-A |
42 ~ 335 mm
|
| ˙ |
6.67 mil PDF 417 |
55 ~ 166 mm
|
|
˙ |
10 mil Data Matrix |
Field of view limited ~ 193 mm
|
| ˙ |
15 mil PDF 417 |
Field of view limited ~ 272 mm
|
