Fixed Mount Barcode Scanner

Fixed Mount Barcode Scanner - 2D FS5020J

Model : FS5020J - 2D Engine (RIOTEC 2D)

Q'ty :

fixed-mount-barcode-scanner-fs5020j-200407.pdf

Fixed-mount scanner is designed for ATM/KIOSK.
* Adopts 2D engine
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232

Specifications
Description

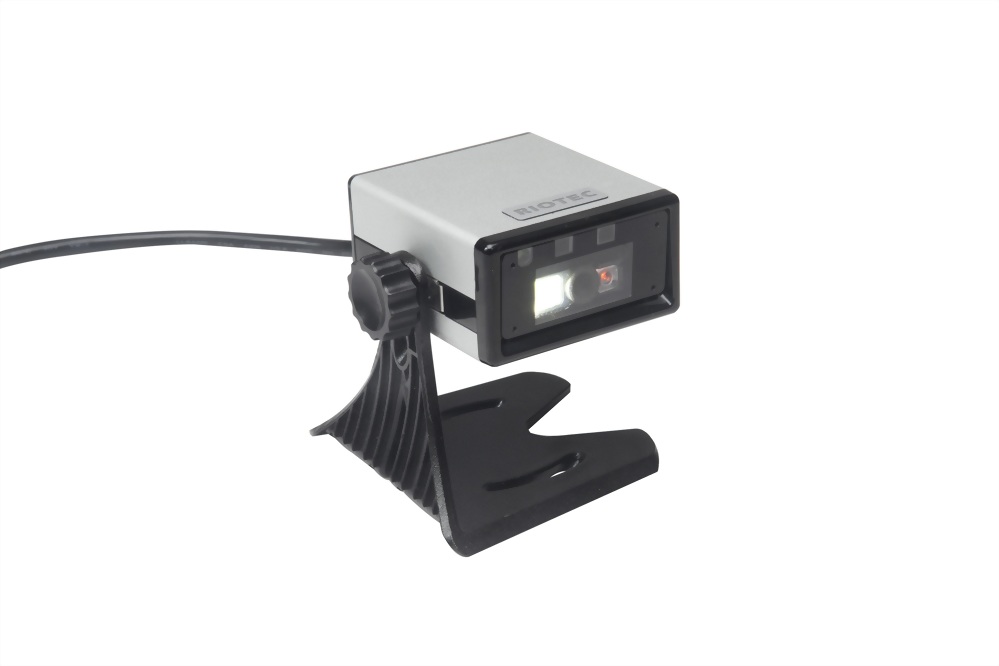

FS5020J- 2D Fixed-mount barcode scanner

FS5020J, Fixed-mount 2D barcode scanner, is designed for ATM, KIOSK, Self-service machine use. User can install FS5020J into their device easily by screws or design the bracket to fix it at the correct location.
Its auto-sensing function can activate the scanning line to read barcodes automatically. This way can raise the working efficiency and reduce the labor cost.

Product advantages

* Adopts 2D engine
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232

	Specifications :
	Model Name	FS5020J
	Description	2D Fixed-mount barcode scanner
	Engine	2D engine
	Performance Characteristics
˙	Illumination Element	White LED
˙	Aiming LED	625 nm
˙	Depth of field	13 mil UPCA：340 mm
˙	Sensor	CMOS (640×480 pixels)
˙	Best resolution	1D (4mil)：Code 39 2D (6.67mil)：PDF417
˙	Indicators	LED & Beeper
˙	Auto-sensing	Up to 200 mm
˙	Print contrast	≥ 30%
˙	Symbologies	Code 128, EAN-13, EAN-8, Code 39, Code 32 UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, PDF417, QR Code,Micro QR Code, Data Matrix, Aztec
˙	interface	USB HID, USB Serial (by request), RS232 (by request)
	Electrical Characteristics
˙	Input voltage	5 V/DC ± 5%
˙	Current - operating	190 mA
	Physical Characteristics
˙	Dimension	60 X 54 X 30 mm
˙	Weight	182 g +/- 5 g (with cable and stand)
˙	Case material	Aluminum & ABS plastic
	Environment
˙	Temperature-operation	15°C to 55°C
˙	Temperature-storage	-30°C to 70°C
˙	Humidity-operation	5% to 95% relative humidity, non-condensing
	Ambient Light	0-100,000 lux (total darkness-bright sunlight)
	Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. )
˙	4 mil Code 39	45mm ~ 120mm
˙	5 mil Code 39	45mm ~ 155mm
˙	13 mil UPCA	40mm ~ 340mm
˙	10 mil DataMatrix	30mm ~ 155mm
˙	20 mil QR code	25mm ~ 280mm
˙	6.67 mil PDF417	50mm ~ 150mm
