Fixed Mount Barcode Scanner - 2D FS5020M
Model : FS5020M - 2D Engine (RIOTEC 2D)
Q'ty :
* Easy installation
* Sensor (1280 x 1024 pixels) can read Code-39 3mil
* Motion tolerance 3.0 m/sec
* Rugged aluminum housing
* Read 1D/2D barcodes on paper or on the screen quickly
* Interface: USB HID, USB-Serial, RS232
If you need a high-speed barcode scanner for production line/conveyor, you can take FS5020M into your consideration.
The FS5020M represents the premium level of data
collection devices. Using advanced 2D imaging technology, FS5020M 2D fixed-mount
barcode reader provides a solution for OEM use into self-service kiosks, price checker,
ticket readers, document handling, as well as vending machines.
Designed for easy integration, the FS5020M 2D Fixed-mount
barcode scanner provides a plug-and-play solution for system designers.
The FS5020M features outstanding reading, high motion
tolerance, snappy reading, and also offers excellent performance on some DPM
codes. .

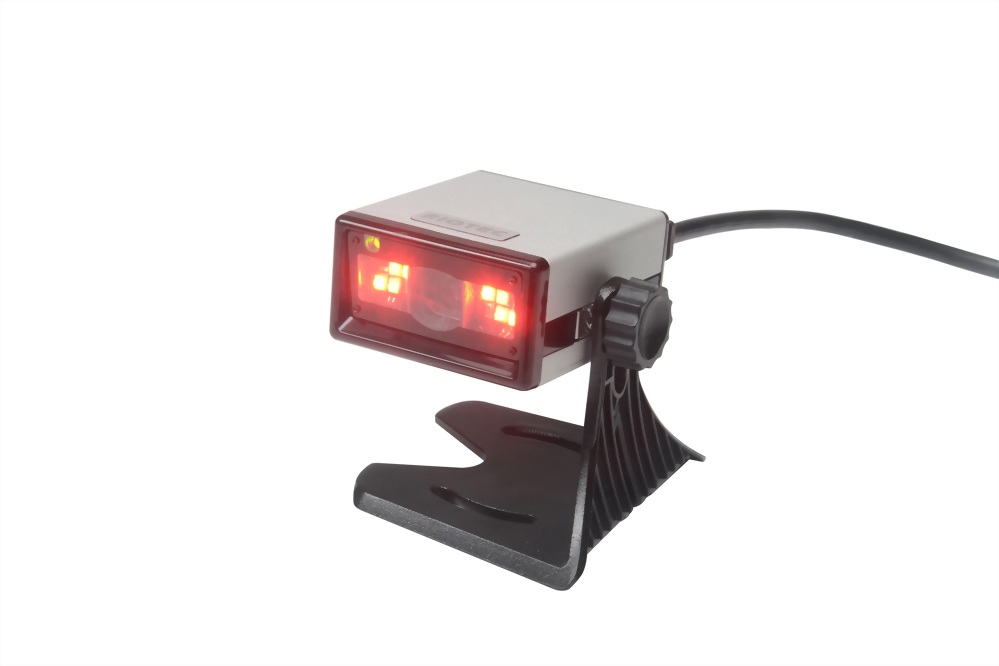

(click the above to review its 360-degree product photo)
Advantages:
* Easy installation
* Sensor (1280 x 1024 pixels) can read Code-39 3mil
* Motion tolerance 3.0 m/sec: can read the moving barcodes quickly.
* Rugged aluminum housing
* Read 1D/2D barcodes on paper or on the screen quickly
* Interface: USB HID, USB-Serial, RS232
|
Specifications : |
|
|
Model Name |
FS5020M
|
|
Description |
Fixed-mount 2D barcode scanner
|
|
Engine |
High-speed 2D engine
|
|
Performance Characteristics | |
˙ |
Motion Tolerance
|
3.0 m/sec
|
˙ |
Scan speed |
60 frame /sec
|
˙ |
Light source |
620 nm Red LED
|
˙ |
Depth of field
|
(13 mil UPC-A): 240 mm
|
˙ |
Sensor |
CMOS (1280×1024 pixels)
|
˙ |
Best resolution |
1D (3 mil): Code 39
|
˙ |
Reading angle |
Tilt: 360° / Pitch ±60° / Skew ±70°
|
˙ |
Print contrast
|
≥ 20% |
˙ |
Indicators |
LED & Beeper
|
˙
|
Symbologies
|
1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E,
Code 11, Code 32,Code 39, Code 93, Code 128, Codabar, industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded 2D: PDF417, MicroPDF417, QR Code, Micro QR Code, Data Matrix, Aztec |
˙ |
Interface |
USB HID, USB Serial (by request), RS232 (by request)
|
|
Electrical Characteristics
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
˙ |
Current - operating |
300 mA
|
|
Physical Characteristics |
|
˙ |
Dimension (L x W x H) |
60 x 54 x 30 mm
|
˙ |
Weight |
182 g +/- 5 g (with cable and stand)
|
˙ |
Case material |
Aluminum & ABS plastic
|
|
Environment |
|
˙
|
Temperature-operation
|
0°C to 50°C
|
˙ |
Temperature-storage |
-10°C to 60°C
|
˙ |
Humidity-operation |
5% to 95% relative humidity, non-condensing
|
˙ |
Ambient Light
|
0-70000 Lux
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
˙ |
4 mil Code 39 |
30 - 130 mm
|
˙ |
5 mil Code 39 |
35 - 160 mm
|
˙ |
13 mil UPC-A |
30 - 240 mm
|
˙ |
20 mil QR Code |
25 - 240 mm
|
˙ |
10 mil Datamatrix |
25 - 150 mm
|
˙ |
6.67 mil PDF417 |
25 - 160 mm |
