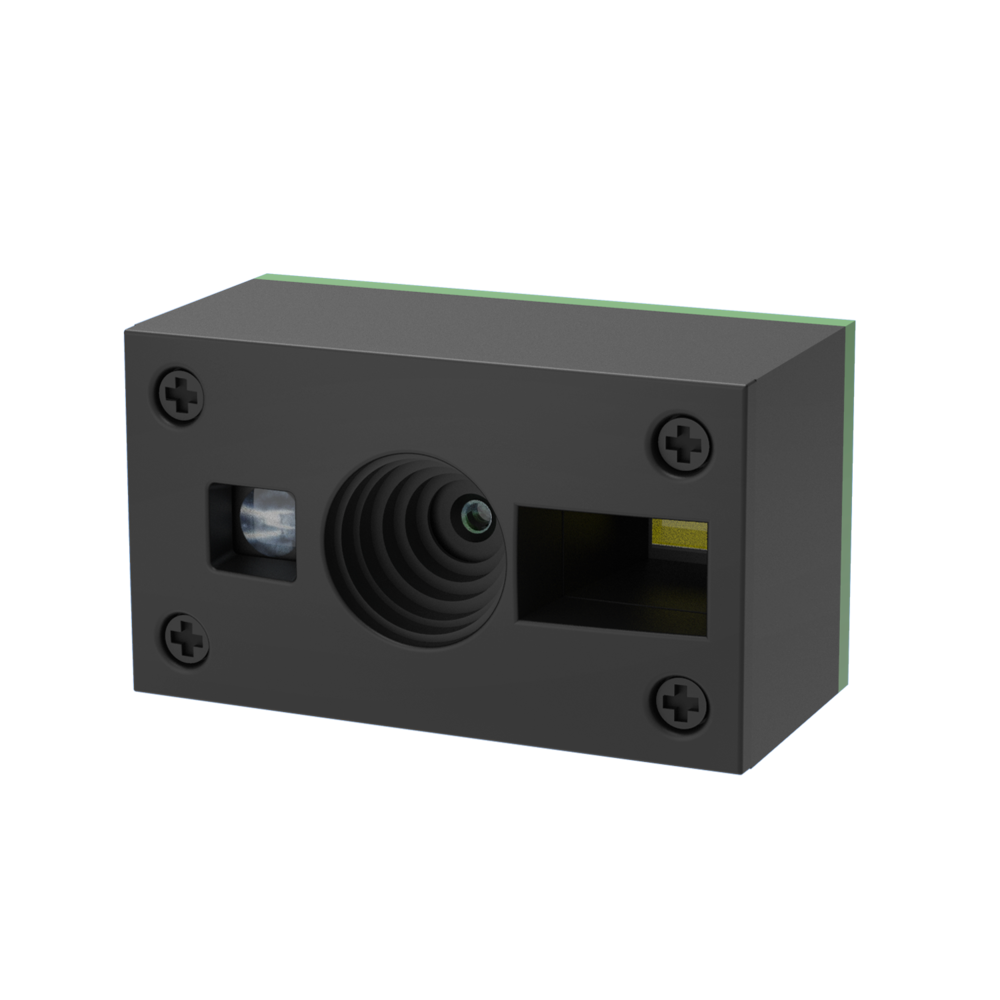

Barcode scan engine- 2D AI3230

Barcode scan engine- 2D AI3230

  • 2D Scan Engine, Barcode Scanner Engine, OEM Scan Engine

Model : AI3230 - 2D Scan Module

Q'ty :

Add To Inquiry

  • RIOTEC, 2D Barcode Engine, OEM Scan Engine, 2D Scan Module, AI3230
2D Barcode Scan Engine AI3230
Special design for the near-field reading application
Scan Engine with 640*480 COMS.
2D Barcode Scan Engine AI3230 with an advanced 2D imaging technology.
Precise decode 1D & 2D bar codes on labels, paper, and mobile phone or computer displays, instantly and accurately.
Various interfaces, easy for integrating into any application which requests 2D Barcode Scan Engine AI3230
Capable to read various size barcodes.
Compatible with Linux, Android, Windows, MAC OS systems,
2D Barcode Scan Engine AI3230
Capable of industrial PDA/Tablet, data collector, blood glucose meter...etc.
  • Specifications
  • Description

RIOTEC 2D Barcode Scan Engine AI3230, special design for the near-field reading application,
With hardware decoder, barcode scan engine can read 1D/2D barcodes quickly.

2D Barcode Scan Engine AI3230:
* Special design for the near-field reading application
* Scan Engine with 640*480 COMS.
* 2D Barcode Scan Engine AI3230 with an advanced 2D imaging technology.
* Precise decode 1D & 2D bar codes on labels, paper, and mobile phone or computer displays, instantly and accurately.
* Various interfaces, easy for integrating into any application which requests 2D Barcode Scan Engine AI3230
* Capable to read various size barcodes.
* Compatible with Linux, Android, Windows, MAC OS systems,
* 2D Barcode Scan Engine AI3230
* Capable of industrial PDA/Tablet, data collector, blood glucose meter...etc.

Performance Characteristics

˙

Illumination Element

Wihte LED

˙

Aiming LED

Red Light

˙

Image Sensor


640×480 CMOS

˙

Depth of field


UPC-A (13 mil):200 mm

˙

Best resolution


4mil  Code39
6.67 mil PDF417

˙

Interface


RS232 TTL, USB (HID)

˙

Print contrast


≥25%

˙

Roll


Roll: 360 °

˙

Pitch


Pitch: 55 °

˙

Yaw


Skew: 55°

˙

Field of View


Horizontal :34°  Vertical:28°

˙

Symbologies


EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 32,
 Code 128, UCC/EAN 128, Codabar, Code 93,
 Interleaved 2 of 5, ISBN, ISSN,  GS1 Databar, MSI,
 Code 11, Industrial 25,  Matrix 2 of 5, QR Code,
 Data Matrix, PDF417, Aztec

Electrical Characteristics

˙

Operational Input Voltage


3.3±5% VDC

˙

Current - operating

170mA

Physical Characteristics

˙

Dimension(W * D * H)


26mm*13.2mm*15mm
(This is a mockup sample size, for the production sample will slight difference in the tolerance. We will keep you update when production sample is ready. )

˙

Weight


4g

Environment

˙

Temperature-operation


0°C to 50°C

˙

Temperature-storage


-10°C to 60°C

˙

Humidity-operation


5% to 95% ( non-condensing)

˙

Light level


0 ~ 100000 lux (natural light)

Decode Distances  ( There are +/- 1 cm tolerance )

˙

5 mil Code39


40mm ~ 90mm

˙

13 mil UPC-A


40mm ~ 200mm

˙

6.67 mil PDF417


30mm ~ 120mm

˙

10 mil Data Matrix


50mm ~  90mm

˙

20 mil QR Code


25mm ~ 200mm
