Barcode Scan Module- 2D SME560J
Model : SME560J - 2D Scan Module
Q'ty :
* excellent scanning performance
* presentation mode
* multi connections: micro USB, 1.25mm Wafer 5pin, FPC 12-pin

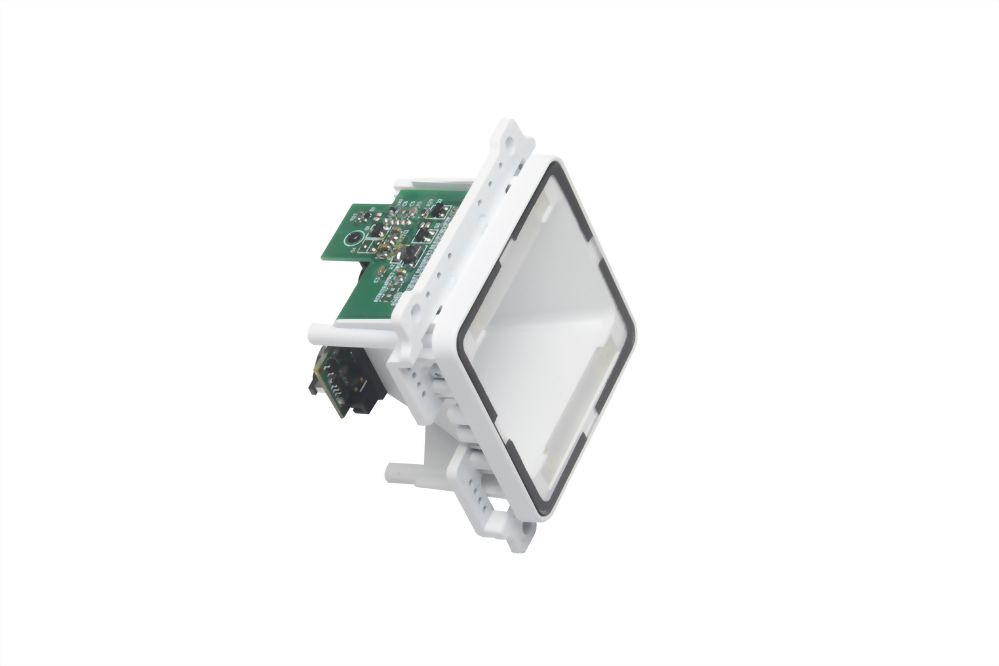

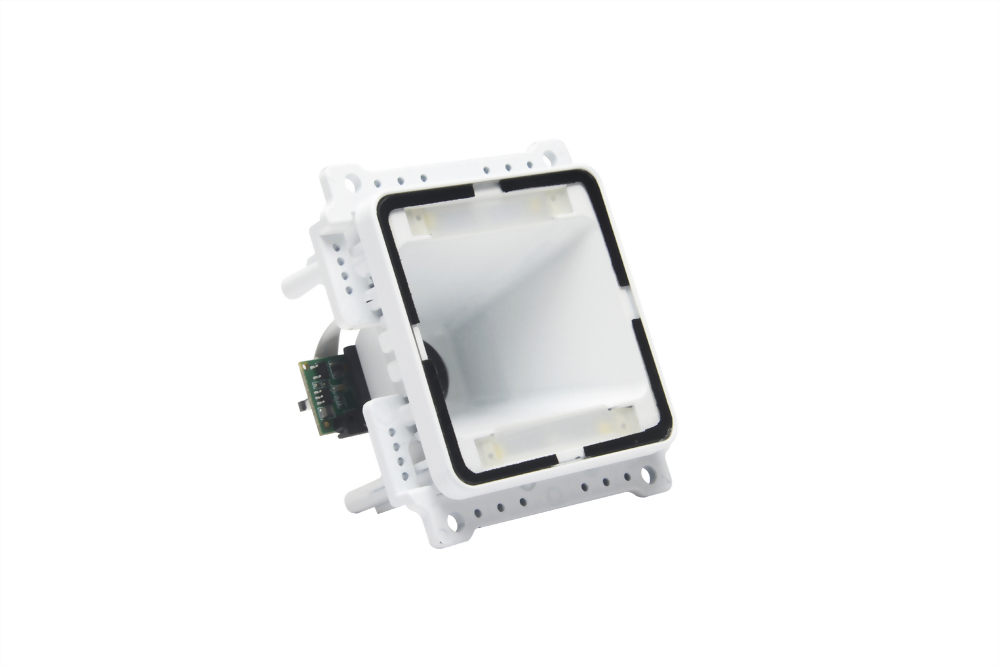

SME560J Stationary 2D scan module is designed for KIOSK/ Self-Service machine use.
(click it to see its 360-degree photo)
With presentation mode, SME560J can scan the barcodes automatically which presented to the windows.
With the excellent scanning performance, SME560J can scan the 1D/2D codes on printed label as well as on smartphone.
SME560J provides three communication methods to connect to main-board, including micro USB / 1.25 mm Wafer 5-pin / FPC 12-pin.
Features:
* CMOS: 640 x 480 pixels
* Be capable to scan 1D/2D codes on printed label as well as on smartphone
* Best resolution: Code 39, 4 mil
* Communication ways to main board: micro USB, 1.25mm Wafer 5-pin, FPC 12-pin
|
Specifications： |
|||
|
Model Name |
SME560J |
||
|
Description |
Stationary 2D barcode scan module |
||
|
Engine |
RIOTEC 2D engine |
||
|
Scan Mode |
Presentation mode |
||
|
Performance Characteristics |
|||
|
˙ |
Illumination Element |
|
White LED |
|
˙ |
Depth of field |
|
13 mil UPCA: 320 mm |
|
˙ |
Sensor |
|
CMOS (640×480 pixels) |
|
˙ |
Best resolution |
|
4mil Code 39 |
|
˙ |
Indicators |
|
LED & Beeper |
|
˙ |
Print contrast |
|
30% or more |
|
˙ |
Symbologies |
|
1D: Code 128, EAN-13, EAN-8,
Code 39, Code 32, UPC-A, UPC-E, Codabar, |
|
˙ |
Interface |
|
USB HID, USB Serial (by request), RS232 (by request) |
|
˙ |
Connection port |
|
micro usb / 1.25mm wafer 5pin / FPC 12 pin |
|
Electrical Characteristics |
|||
|
˙ |
Input voltage |
|
5 V/DC ± 5% |
|
˙ |
Current - operating |
|
190 mA max |
|
Physical Characteristics |
|||
|
˙ |
Dimension (L x W x H) |
|
65.04 x 59 x 45.9 mm |
|
˙ |
Weight |
|
24 g +/- 5 g |
|
˙ |
Case material |
|
ABS plastic |
|
Environment |
|||
|
˙ |
Temperature-operation |
-15°C to 55°C |
|
|
˙ |
Temperature-storage |
|
-30°C to 70°C |
|
˙ |
Humidity-operation |
|
up to 95% relative humidity, non-condensing |
|
˙ |
Ambient Light |
100,000 lux max |
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||
|
˙ |
4 mil Code 39 |
5 ~ 90 mm |
|
|
˙ |
5 mil Code 39 |
|
0 ~ 120 mm |
|
˙ |
13 mil UPCA |
|
20 ~ 320 mm |
|
˙ |
10 mil DataMatrix |
|
0 ~ 135 mm |
|
˙ |
20 mil QR code |
|
0 ~ 240 mm |
