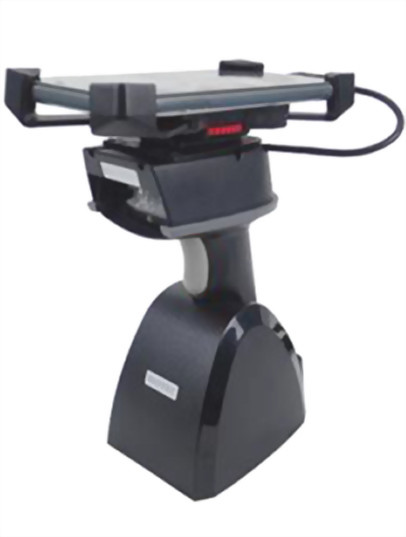

Mobile Barcode Scanner - 1D RioScan iCR6307AS
Model : iCR6307AS - 1D Engine (RIOTEC CR2301A)
Q'ty :
iCR6307AS 1D BT/OTG Mobile barcode scanner for smartphone use
* Scan engine: Ultra-long range CCD engine
* Wired OTG and Bluetooth Connectivity supported
* Android /iOS / WIN / MAC supported
* Universal holder for 4”~6” smartphones
* Charging Cradle Included
* Scan engine: Ultra-long range CCD engine
* Wired OTG and Bluetooth Connectivity supported
* Android /iOS / WIN / MAC supported
* Universal holder for 4”~6” smartphones
* Charging Cradle Included
iCR6307AS 1D BT/OTG Mobile barcode scanner for iOS / Android smartphone use
The unique holder can combine smartphone & barcode scanner well. This solution can bring smartphone into data capture field. That is, smartphone can works as data collector. With different APPs on phone, this solution can be applied in different application and save the hardware cost for small enterprises.
Target:
• Bring smartphone to data capture field
• Replace the traditional terminal / mobile computer.
• Reduce the hardware cost for enterprises.
Features:
• Scan engine: Ultra-long range CCD engine
• Wired OTG and Bluetooth Connectivity supported
** Wired OTG for Android OTG smartphone
** Bluetooth for iOS / Android / Microsoft BT devices
* Android / iOS / Win / Mac supported.
• Universal holder for 4”~6” smartphones
* Charging Cradle Included
Applications:
• Warehouse (inventory management)
• Mobile POS
• Ticket checker
|
|
Scanners Specifications： |
||
|
|
Model Name |
iCR6307AS
|
|
|
|
Description |
Bluetooth/OTG 1D Mobile Barcode Scanner
|
|
|
|
Engine |
Ultra-long range CCD Engine
|
|
|
|
Performance Characteristics | ||
| ˙ |
Light Source
|
610nm~640nm Red LED
|
|
|
˙ |
Depth of field (Based on 300 lux environment. There are +/- 1 cm tolerance) |
Code39 (5mil): 40mm~150mm
EAN13 (13mil): 40mm~520mm |
|
|
˙ |
Scan Speed
|
300 scans/sec
|
|
|
˙ |
Best Resolution
|
4 mil
|
|
| ˙ |
Print Contrast |
≥ 30%
|
|
| ˙ |
Indicators
|
LED & beeper
|
|
|
˙ |
Interface |
Bluetooth: HID or SPP profile (for iOS/Android devices)
Wired OTG: USB OTG cable (for Android OTG devices) |
|
| ˙ |
Symbologies |
Code 128,EAN-13, EAN-8,, Code 39, UPC-A, UPC-E,
Codabar,Interleaved 2 of 5,ISSN, ISBN,Code 93,MSI, Matrix 2 of 5,Industrial 2 of 5,Code 11,RSS-14 RSS-14-limited,RSS-14-expand |
|
|
|
Electrical Characteristics |
||
|
˙ |
Input voltage
|
5 V/DC ± 5%
|
|
|
˙ |
Current - Reading
|
250 mA
|
|
|
˙ |
Radio Range (open area) |
BT Class 1 (70~100m in open area, based on real operation environment)
|
|
|
˙ |
RF Frequency |
2.4GHz
|
|
|
˙ |
Battery Type |
AA NiMH rechargeable battery 1.2V x 2 ( 2.4V 2300mAH)
|
|
|
˙ |
Scans per charge |
more than 20,000 scans
test method: one scan per one second. |
|
|
˙ |
Charge Time
|
4 ~ 5 hours
|
|
|
˙ |
Memory capacity |
1MB (can save more than 65,000 sets EAN-13 barcodes)
|
|
|
|
Physical Characteristics |
||
|
˙ |
Dimension (L * W * H) |
203 X 65 X 95 mm (for scanner)
|
|
|
˙ |
Weight |
202 g +/- 5 g (for scanner), 225 g +/- 5 g (for cradle)
|
|
|
|
User Environment |
||
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
|
˙ |
Humidity-operation
|
5% to 95% relative humidity, non-condensing
|
|
|
˙ |
Ambient Light |
0-100,000 lux
|
|
