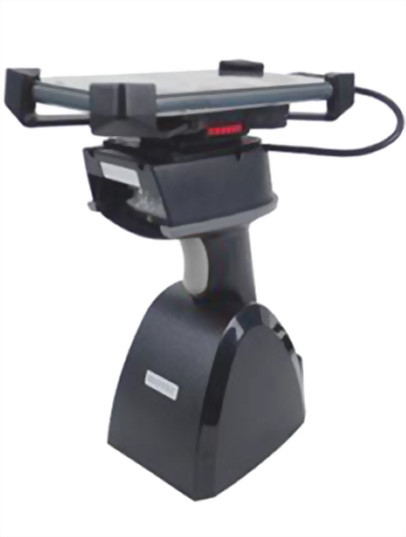

RioScan iLS6303AS 1D Mobile Barcode Scanners
Model : iLS6303AS (Honeywell N4313) (1D spec)
Q'ty :
˙ The Smart Barcode Scanner is designed for Android/iOS phone use.
˙ Communication interface:
BT communication: HID profile or SPP profile (for iOS/Android devices)
Wired communication: USB OTG cable (for Android OTG devices)
˙ iLS6303AS with 1MB memory, supports data transmission & batch mode.
1MB memroy can save 65,000 EAN13 codes.
˙ Unique Scan Holder design makes smartphone & scanner combined easily & closely
˙ Cradle works as charging stand for both scanner & smartphone.
˙ Communication interface:
BT communication: HID profile or SPP profile (for iOS/Android devices)
Wired communication: USB OTG cable (for Android OTG devices)
˙ iLS6303AS with 1MB memory, supports data transmission & batch mode.
1MB memroy can save 65,000 EAN13 codes.
˙ Unique Scan Holder design makes smartphone & scanner combined easily & closely
˙ Cradle works as charging stand for both scanner & smartphone.
|
|
Scanners Specifications： |
||
|
|
Model Name |
iLS6303AS
|
|
|
|
Description |
Bluetooth 2D Barcode Scanner
|
|
|
|
Engine |
Honeywell N4313
|
|
|
|
Performance Characteristics | ||
| ˙ |
Light Source
|
650 nm Laser Diode
|
|
|
˙ |
Depth of Field (55 mil) |
1D (40 mil Code 39): 714 mm
|
|
|
˙ |
Scan Rate |
108±16 scans /sec
|
|
|
˙ |
Best Resolution
|
1D (4 mil) Code 39
|
|
| ˙ |
Print Contrast |
20%
|
|
|
˙ |
Scan Angle |
Tilt : ±35° / Pitch : ±60° / Skew : ±65°
|
|
| ˙ |
Indicators
|
green/red LED & beeper
|
|
|
˙ |
Interface |
BT communication: HID profile or SPP profile (for iOS/Android devices)
Wired communication: USB OTG cable (for Android OTG devices) |
|
|
˙ |
Symbologies |
Codabar,Code11,Code128,Code32,Code39,Code93,
EAN/JAN-13,EAN/JAN-8,GS1DataBar Expanded, GS1DataBar Limited,GS1DataBar Omnidirectional, GS1-128,interleaved 2 of 5,ISBT 128,Matix 2 of 5, MSI,NEC 2 of 5,Plessy Codes ,Postal Codes, Straight 2 of 5 IATA,Straight 2 of 5 Industrial, Telepen,Troptic Code,UPC-A,UP-E0,China Post |
|
|
|
Electrical Characteristics |
||
|
˙ |
Input voltage
|
5 VDC ± 5%
|
|
|
˙ |
Current - operating
|
350mA max
|
|
|
˙ |
Radio Range |
BT Class 1 (70~100m in open area, based on real operation environment)
|
|
|
˙ |
RF Frequency |
2.4GHz
|
|
|
˙ |
Battery Type |
AA NiMH rechargeable battery 1.2V x 2 ( 2.4V 2300mAH)
|
|
|
˙ |
Scans per charge |
more than 25,000 scans when fully charged
|
|
|
˙ |
Charge Time
|
4 ~ 5 hours
|
|
|
˙ |
Memory capacity |
1MB
(can save 65,000 sets more EAN 13 barcode) |
|
|
|
Physical Characteristics |
||
|
˙ |
Dimension (L * W * H) |
203 X 65 X 95 mm (for scanner)
|
|
|
˙ |
Weight |
202 g +/- 5 g (for scanner), 225 g +/- 5 g (for cradle)
|
|
|
|
User Environment |
||
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
|
˙ |
Humidity
|
5% to 95% relative humidity, non-condensing
|
|
|
˙ |
Ambient Light |
100,000 lux (Direct Sunlight)
|
|
|
|
Decode Zone (Based on Symbol’s Standard Code 39 PCS=0.9 label and 600 lux environment. There are +/- 1 cm tolerance) |
||
| ˙ |
4 mil Code 39
|
97 ~ 121 mm
|
|
| ˙ |
5 mil Code 39 |
86 ~ 170 mm
|
|
|
˙ |
7.5 mil Code 39 |
72 ~251 mm
|
|
|
˙ |
10 mil Code 39 |
46 ~ 351 mm
|
|
|
˙
|
15 mil Code 39 |
25 ~ 527 mm
|
|
|
˙ |
40 mil Code 39 |
76 ~ 714 mm |
|
|
˙ |
13mil 100% UPC
|
32~ 437 mm
|
|
