Wearable Pocket Barcode Scanner - 1D iDC9607AW
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 20,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use
iDC9607AW- Wearable 1D Pocket Barcode Scanner with DISPLAY
Wearable pocket barcode scanner is designed for warehouse / logistic use.
iDC9607AW adopts Ultra-long range CCD engine and its scanning performance is as good as laser barcode reader. With it, operators can scan the barcodes easily than before.
iDC9607AW has below different applications:

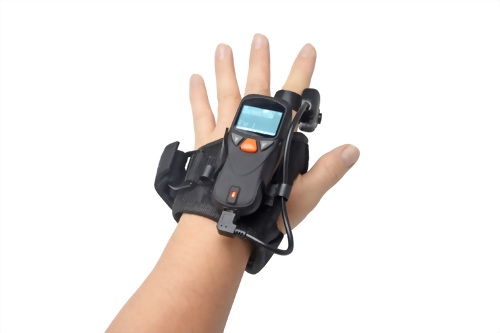

* work with wearable glove set
* use pocket barcode scanner separately
* stick pocket barcode scanner on back of tablet by holder & velcro
Different from other similar scanners, iDC9607AW has the below benefits:
* Pocket-size design: 100 x 43 x 27 mm
• Simple Operation by LCD Screen
• Long transmission distance: 70~100 m, Line Of Sight
• Support Android / iOS / Windows / MAC devices
• Support Direct-scan & Memory-scan modes
• Keyboard Toggle On iOS Device
• Multi-language UI setting: English, Spanish, Japanese, Germany, French
• Long working time: 20,000 scans/per fully charged.
• Wearable Glove Set can be used for right/left hand use
|
Scanner(Data Collector) Specifications： |
|||
|
Model Name |
iDC9607AW |
||
|
Description |
Wireless 1D Pocket Barcode Scanner |
||
|
Engine |
Ultra-long range CCD engine |
||
|
Performance Characteristics |
|||
|
˙ |
Light Source |
|
610~640 nm Red LED |
|
˙ |
LCD Panel |
|
Dots: 128 x 64 |
|
˙ |
Depth of field |
|
13 mil EAN 13 l : 440 mm |
|
˙ |
Scan Speed |
|
300 scans/sec |
|
˙ |
Best Resolution |
|
4 mil Code 39 |
|
˙ |
Print Contrast |
|
30% or more |
|
Indicators |
|
green/red LED & beeper |
|
|
˙ |
Charge |
|
Mini USB port |
|
˙ |
Symbologies |
|
Code 128, EAN-13, EAN-8,, Code 39, UPC-A,
UPC-E, Codabar, |
|
˙ |
Interface |
|
through BT |
|
Electrical Characteristics |
|||
|
˙ |
Input voltage |
5 V/DC ± 5% |
|
|
˙ |
Current - Reading |
180 mA max |
|
|
˙ |
Radio Range |
|
BT Class 1 (70~100m in open area, based on real operation environment) |
|
˙ |
RF Frequency |
|
2.4 GHz |
|
˙ |
Communication |
|
HID profile, SPP profile |
|
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
|
˙ |
Scans per charge |
|
more than 20,000 scans |
|
˙ |
Charge Time |
|
4 ~ 5 hours |
|
˙ |
Power cable |
|
Mini USB cable |
|
˙ |
Memory capacity |
|
1MB (can save more than 65,000 sets EAN-13 barcodes) |
|
Physical Characteristics |
|||
|
˙ |
Dimension (L x W x H) |
Scanner 100 x 43 x 27 mm |
|
|
˙ |
Weight |
Scanner 72 g +/- 5 g, Glove + Holder + Ring Trigger Cable 60g +/- 2g |
|
|
User Environment |
|||
|
˙ |
Temperature-operation |
0°C to 50°C |
|
|
˙ |
Temperature-storage |
-10°C to 60°C |
|
|
˙ |
Humidity |
Up to 95% relative humidity, non-condensing |
|
|
Depth of Field (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||
|
˙ |
4 mil Code39 |
|
75mm ~ 180mm |
|
˙ |
5 mil Code39 |
|
70mm ~ 200mm |
|
˙ |
13 mil EAN 13 |
|
55mm ~ 440mm |
