Pocket Barcode Scanner - 1D iDC9607A
Model : iDC9607A - 1D Engine (RIOTEC CR2301A)
Q'ty :
* Adopts Ultra-long range CCD engine
* Simply operation through LCD display
* iOS / Mac / Android / Windows supported
* Keyboard toggle on iOS devices
* Long transmission distance: 70~100 meters, Line of Sight
* Long working time: support 20,000 scans/per fully charged.
* Supports "Direct-scan" and "Memory-scan" modes
* Multi-language UI: English, Germany, Spanish, French, Japanese

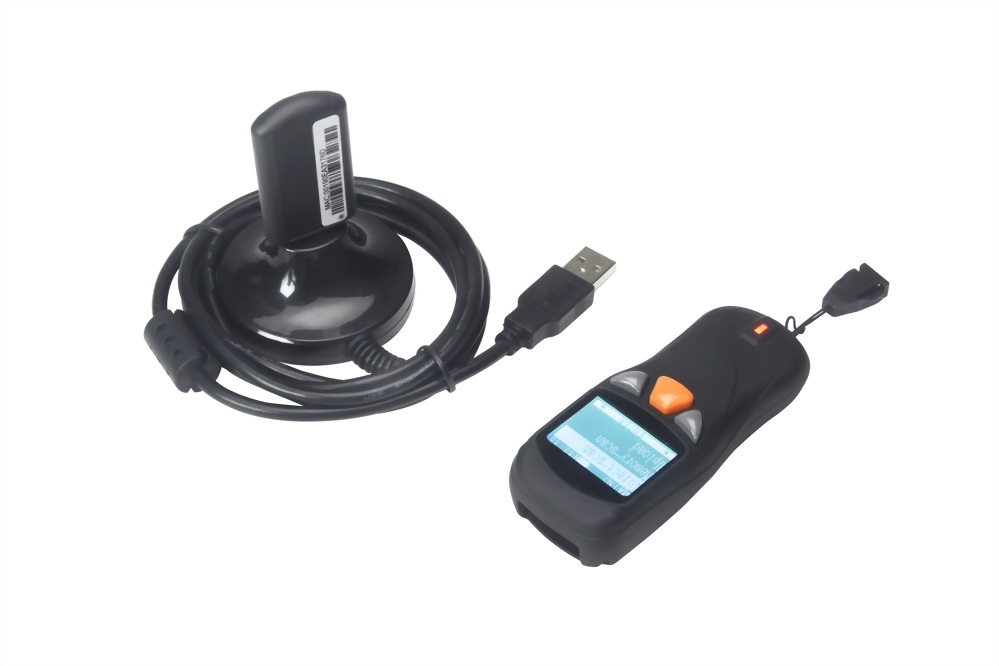

* Option: wearable glove set & USB Bluetooth dongle
iDC9607A- 1D Bluetooth Pocket Barcode Scanner with DISPLAY
iDC9607A is designed for Warehouse (inventory management), Retail, Logistic use.
iDC9607A adopts Ultra-long range CCD engine which can read 1D codes on paper label as well as on smartphone. iDC9607A has Bluetooth Class 1 module inside and it supports long transmission distance (70~100 meters, Line of Sight).
Different from other similar scanners, iDC9607A has the below benefits:
* Adopts ultra-long range CCD engine
* Simply operation through LCD display
* iOS / Mac / Android / Windows devices
* Keyboard toggle on iOS devices
* Long transmission distance: 70~100 meters Max., Line of Sight
* Long working time: support more than 20,000 scans/per fully charged.
* Supports "Direct-scan" and "Memory-scan" modes
* Multi-language UI: English, Germany, Spanish, French, Japanese
Option:
* Wearable Glove set: glove, trigger cable, holder
* USB Bluetooth dongle (supports Bluetooth HID profile or Bluetooth SPP profile)
Scanner(Data Collector) Specifications: |
|||
|
Model Name |
|
iDC9607A |
|
Description |
|
Bluetooth Barcode Scanner |
|
Engine |
|
Ultra-long range CCD engine |
|
|||
˙ |
Light Source |
|
610nm~640nm Red LED |
˙ |
LCD Panel |
|
Dots: 128 x 64 |
˙ |
Depth of field |
|
Code39 40 mil : 1200 mm |
˙ |
Scan Speed |
|
300 scans/sec |
˙ |
Best Resolution |
|
4 mil Code 39 |
˙ |
Print Contrast |
|
30% or more |
˙ |
Indicators |
|
green/red LED & beeper |
˙ |
Charge |
|
Mini USB port |
˙ |
Symbologies |
|
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, |
˙ |
Interface |
|
through BT |
Electrical Characteristics |
|||
˙ |
Input voltage |
|
5 V/DC ± 5% |
˙ |
Current - Reading |
|
180 mA max |
˙ |
Radio Range |
|
BT Class 1 (70~100m in open area, based on real operation environment) |
˙ |
RF Frequency |
|
2.4GHz |
˙ |
Communication |
|
HID profile, SPP profile |
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
˙ |
Scans per charge |
|
more than 20,000 scans |
˙ |
Charge Time |
|
4 ~ 5 hours |
˙ |
Power cable |
|
Mini USB cable |
˙ |
Memory capacity |
|
1MB (can save 65,000 sets more EAN 13 barcode) |
Physical Characteristics |
|||
˙ |
Dimension (L x W x H) |
|
100 x 43 x 27 mm |
˙ |
Weight |
|
72 g +/- 5 g |
User Environment |
|||
˙ |
Temperature-operation |
|
0°C to 50°C |
˙ |
Temperature-storage |
|
-10°C to 60°C |
˙ |
Humidity |
|
Up to 95% relative humidity, non-condensing |
Depth of Field (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||
˙ |
4 mil Code39 |
|
65 mm - 150 mm |
˙ |
5 mil Code39 |
|
55 mm - 180 mm |
˙ |
13 mil EAN 13 |
|
65 mm - 420 mm |
˙ |
40 mil Code39 |
|
41 mm - 1200 mm |
