Fixed Mount Barcode Scanner - 1D FS5022A
* Adopts Honeywell N4313 Laser engine
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232

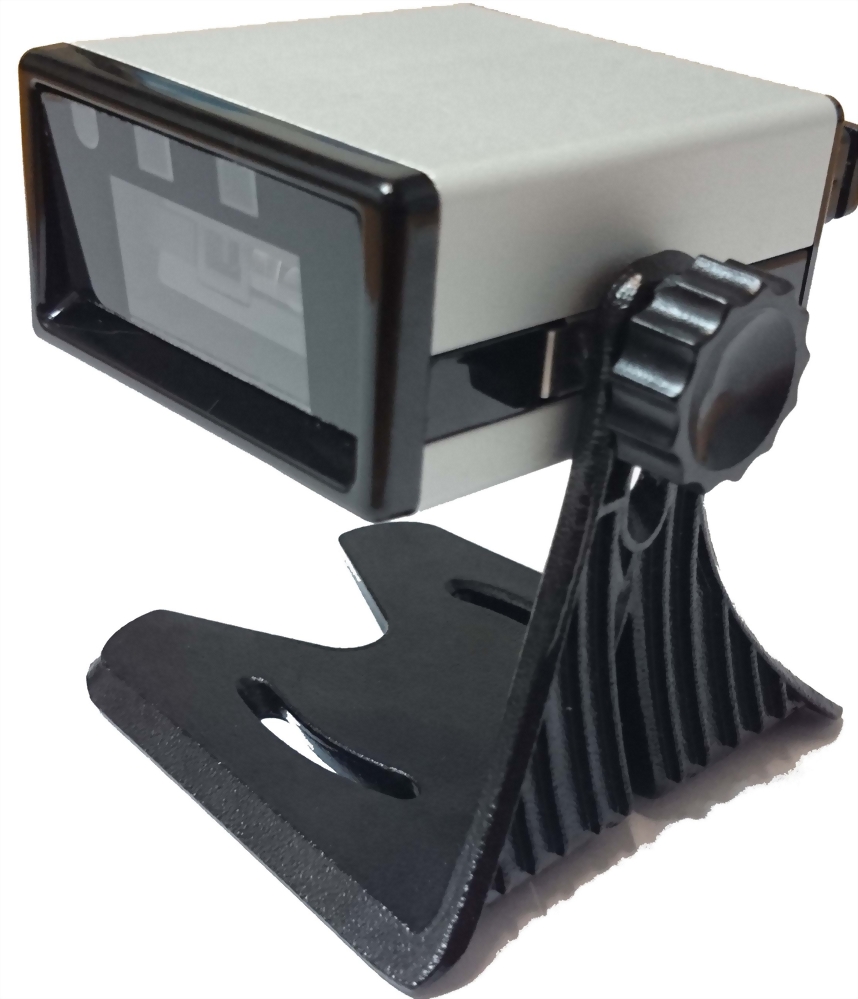

FS5023A- 1D Fixed-mount barcode scanner
FS5023A, Fixed-mount 1D barcode scanner, is designed for ATM, KIOSK, Self-service machine use. User can install FS5023A into their device easily by screws or design the bracket to fix it at the correct location.
Its auto-sensing function can activate the scanning line to read barcodes automatically. This way can raise the working efficiency and reduce the labor cost.
Product advantages
* Adopts Honeywell N4313 Laser engine
* Rugged Aluminum housing design
* Small-size design.
* Enhance user’s productivity in Auto-sensing.
* Suitable for ATM, KIOSK, Self-service machine
* Interface: USB HID, USB-Serial, RS232
|
|
Specifications : |
|
|
|
Model Name |
FS5022A
|
|
|
Description |
1D Fixed-mount Barcode Scanner
|
|
|
Engine |
Honeywell N4313 Laser engine
|
|
|
Performance Characteristics | |
|
|
Light Source |
650 nm Laser Diode |
|
˙ |
Depth of Field
|
1D (40 mil Code 39): 734 mm
|
| ˙ |
Scan Speed |
108±16 scans /sec
|
|
˙ |
Best Resolution |
1D (4 mil) Code 39
|
| ˙ |
Print Contrast
|
≥ 20%
|
|
˙ |
Scan Angle |
Tilt : ±35° / Pitch : ±60° / Skew : ±65°
|
| ˙ |
Indicators |
LED & Beeper
|
|
˙ |
Auto-sensing |
Up to 200 mm
|
| ˙ |
Symbologies
|
Codabar, Code11, Code128, Code32, Code39, Code93, |
|
˙ |
Interface |
USB HID, USB Serial (by request), RS232(by request)
|
|
|
Electrical Characteristics
|
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
|
˙ |
Current - operating |
＜200 mA
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension |
60 X 54 X 30 mm
|
|
˙ |
Weight |
182 g +/- 5 g (with cable and stand)
|
|
˙ |
Case material |
Aluminum & ABS plastic
|
|
|
Environment |
|
|
˙
|
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity-operation |
5% to 90% relative humidity, non-condensing
|
|
˙ |
Ambient Light |
100,000 lux (Direct Sunlight) |
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
| ˙ |
4 mil Code 39 |
117 ~ 141 mm
|
| ˙ |
5 mil Code 39 |
106 ~ 190 mm
|
| ˙ |
7.5 mil Code 39 |
92 ~ 271 mm
|
|
˙ |
10 mil Code 39 |
66 ~ 371 mm
|
| ˙ |
15 mil Code 39 |
45 ~ 547 mm
|
|
˙ |
40 mil Code 39 |
96 ~ 734 mm
|
|
˙
|
13 mil 100% UPC
|
52 ~ 457 mm
|
