Specifications :

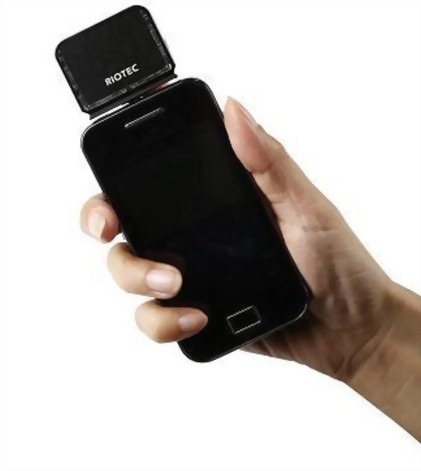

Model Name

DC9252N

Engine

ZEBRA SE2707

Performance Characteristics

˙

Aiming LED

610 nm LED

˙

Illumination Element

1 Hyper Red 660 nm LED

˙

Depth of field

1D ( 20mil Code 39 )：Max 420 mm
2D ( 20mil QR Code) : Max 250 mm

˙

Sensor

CMOS (640×400 pixels)

˙

Best resolution

1D (4mil)：Code 39
2D (6.6mil)：PDF417

Print contrast

≥ 20%

˙

Reading angle

 Tilt: 360° / Pitch ±60° / Skew ±60°

˙

Interface

Micro USB ( USB_HID ,USB Serial )

˙

Symbologies

UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, ISBN,Code 128, UCC/EAN-128, ISBT 128,
 Code 39,Code39 Full ASCII, Trioptic Code 39, Code 32 (Italian Pharma Code),
 Code 93 ,Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5,
Codabar, MSI GS1 DataBar, PDF 417, MicroPDF417, Datamatrix, QR Code,
Micro QR Code,Aztec,Composite, TLC-39, MaxiCode, Postal: US PostNet,
US PlanetUK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)

Electrical Characteristics

˙

Input voltage

Smart Phone / Tablet  Power

˙

Current - operating

340 mA

Physical Characteristics

˙

Dimension (L x W x H)

34.5 x 43.6 x 15.6 mm
(without connector)

˙

Color of housing

Black

˙

Weight

20 g

Environment

˙

Temperature-operation

0°C to 50°C

˙

Temperature-storage

-10°C to 60°C

˙

Humidity-operation

5% to 95% relative humidity, non-condensing

Decode Zone   (DOF is measured at the office under 600 lux and by Standard barcode.  There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. )

˙

     4 mil Code 39

75 ~ 100 mm

˙

     5 mil Code 39

65 ~ 120 mm

˙

   13 mil UPC-A

60 ~ 300 mm

˙

   20 mil Code 39

100~ 420 mm

˙

6.67 mil PDF417

75 ~ 110 mm

˙

   10 mil DataMatrix

70 ~ 140 mm

˙

   20 mil QR Code

55 ~ 250 mm
