Mobile Barcode Scanner - 1D AndroScan DC9253AP
** Adopts Honeywell N4313 Laser engine
** Plug and Play.
** Simple Operation with touch trigger.
** Support 4"~6" Android phone with OTG function
** Through PU glue & suction cup, DC9253AP can stick on back of smartphone well.
** Supports more than 20K scans/per fully charged.
** Can charge smartphone & scanner batteries at the same time.

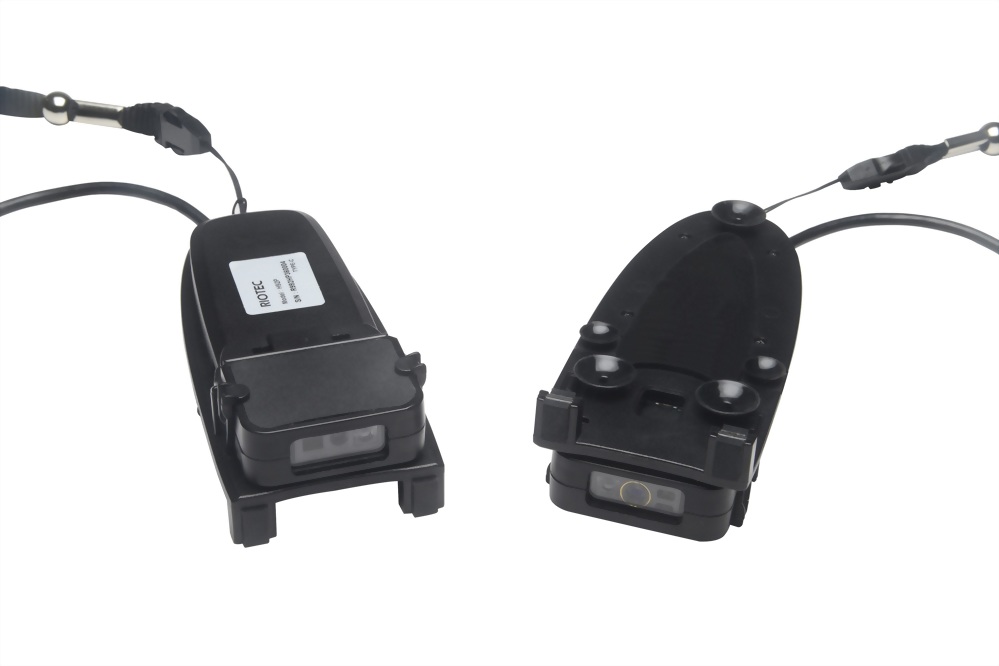

DC9253AP- AndroScan 1D Mobile Barcode Scanner for Android smartphone use.
RIOTEC develops AndroScan mobile barcode scanner which can upgrade Android smartphone to simple data collector. This solution can be applied in Warehouse (inventory management), Retail, Logistic, Ticket Checker. This way can not only raise the working efficiency/productivity, but also save hardware cost for enterprise.
** Adopts Honeywell N4313 Laser engine
** Plug and Play.
** Simple Operation with touch trigger.
** Support 4"~6" Android phone with OTG function

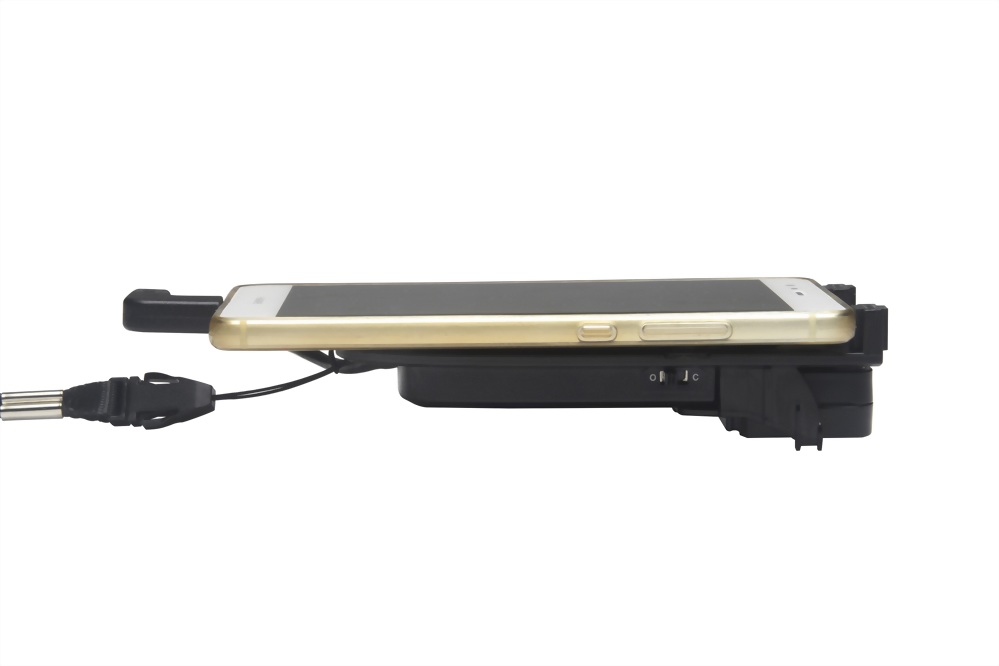

** Through PU glue & suction cup, DC9253AP can stick on back of smartphone well.
** With Li-Ion battery 900mAH inside, DC9253AP supports more than 20K scans/per fully charged.
** Can charge smartphone & scanner batteries at the same time.
Options:
1. Interface: USB HID or USB-Serial interface
2. Li-Ion battery: DC9253AP (with Li-Ion battery); DC9253AN (without battery)
3. Cable: micro USB cable or type-C cable
|
Specifications : |
||||
|
Model Name |
DC9253AP |
DC9253AN |
||
|
Engine |
Honeywell N4313 Laser Engine |
|||
|
Performance Characteristics |
||||
|
˙ |
Light Source |
|
650 nm Laser Diode |
|
|
˙ |
Depth of Field |
|
1D (40 mil Code 39): 734 mm |
|
|
˙ |
Scan Speed |
|
108±16 scans /sec |
|
|
˙ |
Best Resolution |
|
1D (4 mil) Code 39 |
|
|
˙ |
Scan Angle |
|
Tilt : ±35° / Pitch : ±60° / Skew : ±65° |
|
|
˙ |
Charge |
|
Micro USB port |
|
|
˙ |
Interface |
|
USB HID, USB Serial |
|
|
˙ |
Cable supported |
|
Micro USB cable or Type-C cable |
|
|
˙ |
Print Contrast |
|
≥ 20% |
|
|
˙ |
Symbologies |
|
Codabar, Code11, Code128,
Code32, Code39, Code93, |
|
|
˙ |
Scan Holder |
|
with H92P
(with battery) |
with H92N (without battery) |
|
Electrical Characteristics |
||||
|
˙ |
Input voltage |
|
5 V/DC ± 5% |
|
|
˙ |
Current - operating |
＜200 mA |
||
|
Physical Characteristics |
||||
|
˙ |
Dimension (L * W * H) |
|
125 X 52.5 X 32.5 mm |
|
|
˙ |
Color of housing |
|
Black |
|
|
˙ |
Weight |
|
82 g+/- 5 g |
60g+/- 5 g |
|
Environment |
||||
|
˙ |
Temperature-operation |
|
0°C to 50°C |
|
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
|
˙ |
Humidity-operation |
|
5% to 95% relative humidity, non-condensing |
|
|
˙ |
Ambient Light |
|
100,000 lux (Direct Sunlight) |
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
||||
|
˙ |
4 mil Code 39 |
|
117 ~ 141 mm |
|
|
˙ |
5 mil Code 39 |
|
106 ~ 190 mm |
|
|
˙ |
7.5 mil Code 39 |
|
92 ~ 271 mm |
|
|
˙ |
10 mil Code 39 |
|
66 ~ 371 mm |
|
|
˙ |
15 mil Code 39 |
|
45 ~ 547 mm |
|
|
˙ |
40 mil Code 39 |
|
96 ~ 734 mm |
|
|
˙ |
13 mil 100% UPC |
|
52 ~ 457 mm |
|
