Stationary Barcode Scanner - 2D FS5620J

Stationary Barcode Scanner - 2D FS5620J

  • RIOTEC Desktop 2D Barcode Scanner for E-payment. FS5620J, QR code reader
  • Stationary Barcode Scanner - 2D FS5620J

Model : FS5620J - 2D Engine (RIOTEC 2D)

Q'ty :

Add To Inquiry

  • RIOTEC Stationary 2D Barcode Scanner FS5620J
* Omni-directional reading
* 1D / 2D Imager capture capability.
* Interface options: USB HID
* Integrated good-read beeper & LED indicator
* Presentation mode
* Applications: QR code reader on desk;
Hands-free Barcode Scanner with stand
Install into KIOSK, Self-service device
  • Specifications
  • Description

The FS5620J represents the high level of data collection devices.
Using 2D imaging
technology, FS5620J 2D stationary barcode reader provides a solution for OEM use into self-service kiosks, price checker, ticket readers, document handling, as well as vending machines.

Features:
 * Omni-directional reading

* 1D / 2D Imager capture capability.
* Interface options: USB HID
* Integrated good-read beeper & LED indicator
* Presentation mode
* Applications: QR code reader on desk;
                        Hands-free Barcode Scanner with stand
                        Install into KIOSK, Self-service device

Scanners Specifications:

Model Name

FS5620J

Description

Stationary 2D barcode scanner

Engine

2D engine

Scan Mode

Presentation mode

Performance Characteristics

˙

Light source

White LED

˙

Scan speed


60 frame /sec

˙

Depth of field

 13 mil UPCA: 280 mm
20 mil QR code:
220mm

˙

Sensor


CMOS (640×480 pixels)

˙

Best resolution

1D (4mil): Code 39

˙

Indicators


LED & Beeper

˙

Print contrast


≥ 30% or more

˙

Symbologies

1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,
2D: PDF417, QR Code, Micro QR Code, Data Matrix, Aztec

˙

Interface


USB HID or USB-Serial

Electrical Characteristics

˙

Input voltage

5 V/DC ± 5%

˙

Current - operating

190 mA  max

Physical Characteristics

˙

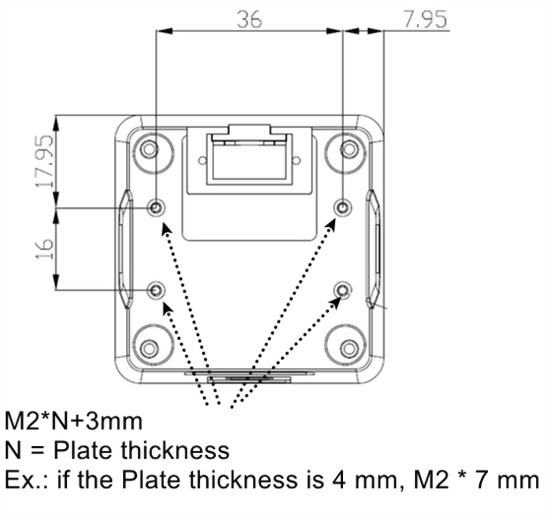

Dimension (L x W x H)


52 X 52 X 50 mm

˙

Weight

102 g +/- 5 g  (with Cable No stand)

Environment

˙

Temperature-operation

-0°C to 50°C

˙

Temperature-storage

-10°C to 60°C

˙

Humidity-operation

5% to 95% relative humidity, non-condensing

˙

Ambient Light

0-100,000 lux max

Decode Zone    (DOF is measured at the office under 600 lux and by Standard barcode.  There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. )

˙

  4 mil Code 39


 10 ~   90 mm

˙

  5 mil Code 39


  10 ~ 120 mm

˙

13 mil UPCA


  20 ~ 280 mm

˙

10 mil DataMatrix


  10 ~ 135 mm

˙

20 mil QR code


    0 ~ 240 mm
