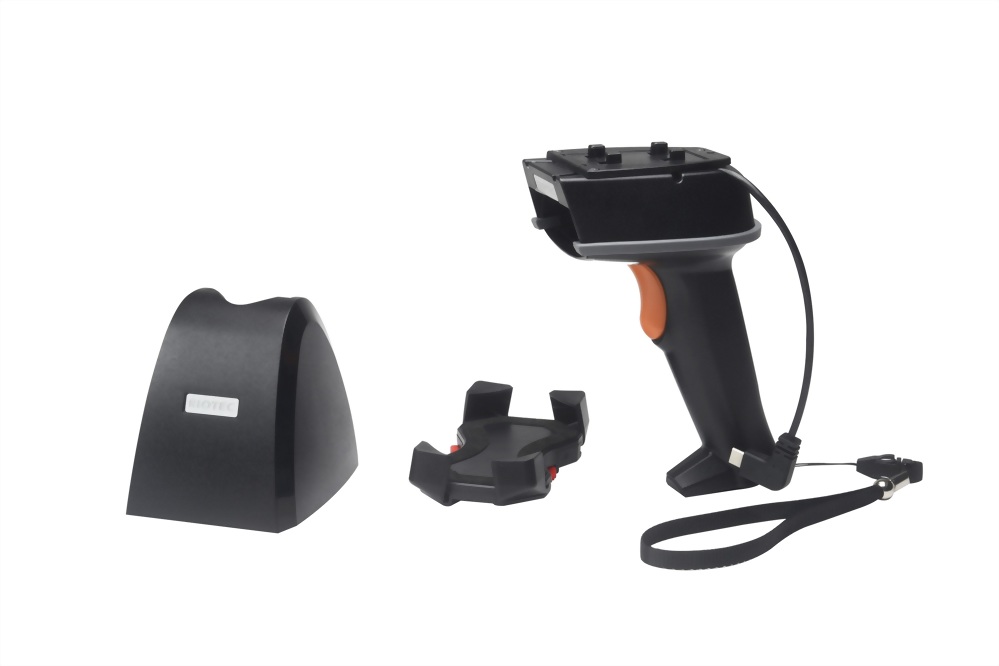

RioScan iLS6303XS 2D Mobile Barcode Scanners
Model : iLS6303XS (2D Engine) (2D spec)
Q'ty :
˙ The Smart Barcode Scanner is designed for Android/iOS phone use.
˙ Communication interface:
BT communication: HID profile or SPP profile (for iOS/Android devices)
Wired communication: USB OTG cable (for Android OTG devices)
˙ iLS6303XS with 1MB memory, supports data transmission & batch mode.
1MB memroy can save 65,000 EAN13 codes.
˙ Unique Scan Holder design makes smartphone & scanner combined easily & closely
˙ Cradle works as charging stand for both scanner & smartphone.
˙ Communication interface:
BT communication: HID profile or SPP profile (for iOS/Android devices)
Wired communication: USB OTG cable (for Android OTG devices)
˙ iLS6303XS with 1MB memory, supports data transmission & batch mode.
1MB memroy can save 65,000 EAN13 codes.
˙ Unique Scan Holder design makes smartphone & scanner combined easily & closely
˙ Cradle works as charging stand for both scanner & smartphone.
|
|
Scanners Specifications |
||
|
|
Model Name |
iLS6303XS
|
|
|
|
Description |
Bluetooth 2D Barcode Scanner
|
|
|
|
Engine |
Honeywell N5680 HD
|
|
|
|
Performance Characteristics | ||
|
˙ |
Light Source |
617 nm Visible red LED |
|
| ˙ |
Depth of Field
|
1D (7.5 mil Code 39): 132 mm
2D (5 mil Data Matrix): 66 mm |
|
|
˙ |
Scan Speed |
60 frame /sec
|
|
|
˙ |
Best Resolution |
1D (3 mil) Code 39
2D (5 mil) MicroPDF417 |
|
|
˙ |
Sensor
|
CMOS (884×640 pixels)
|
|
| ˙ |
Print Contrast |
20%
|
|
|
˙ |
Scan Angle |
Tilt: 360° / Pitch ±45° / Skew ±65°
|
|
| ˙ |
Indicators
|
green/red LED & beeper
|
|
|
˙ |
Interface |
BT communication: HID profile or SPP profile (for iOS/Android devices)
Wired communication: USB OTG cable (for Android OTG devices) |
|
|
˙ |
Symbologies |
UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128,
Code 32, Code 93, Codabar/NW7, Code 2 of 5,
Matrix 2 of 5, Interleaved 2 of 5, MSI, Telepen,
Trioptic, China Post PDF417, MicroPDF417,
Aztec Code, Data Matrix, QR Code, Micro QR Code,
GS1 Symbologies Composite, MaxiCode, Han Xin Code;
Intelligent Mail Barcode, Postal-4i, Australian Post,
British Post, Canadian Post, Japanese Post,
Netherlands (KIX) Post, Postnet, Planet Code
OCR-A, OCR-B, E13B (MICR)
|
|
|
|
Electrical Characteristics |
||
|
˙ |
Input voltage
|
5 VDC ± 5%
|
|
|
˙ |
Current - operating
|
<400 mA
|
|
|
˙ |
Radio Range |
BT Class 1 (70~100m in open area, based on real operation environment)
|
|
|
˙ |
RF Frequency |
2.4GHz
|
|
|
˙ |
Battery Type |
Rechargeable Li-Ion battery pack
(3.7V 800mAH) |
|
|
˙ |
Scans per charge |
more than 10,000 scans when fully charged
|
|
|
˙ |
Charge Time
|
4 ~ 5 hours
|
|
|
˙ |
Memory capacity |
1MB
(can save 65,000 sets more EAN 13 barcode) |
|
|
|
Physical Characteristics |
||
|
˙ |
Dimension (L * W * H) |
203 X 65 X 95 mm (for scanner)
|
|
|
˙ |
Weight |
202 g +/- 5 g (for scanner), 225 g +/- 5 g (for cradle)
|
|
|
|
User Environment |
||
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
|
˙ |
Humidity
|
5% to 95% relative humidity, non-condensing
|
|
|
˙ |
Ambient Light |
0-100,000 lux (total darkness-bright sunlight)
|
|
|
|
Decode Zone (Based on Symbol’s Standard Code 39 PCS=0.9 label and 600 lux environment. There are +/- 1 cm tolerance) |
||
|
˙ |
3 mil Code 39 |
28 ~ 71 mm |
|
|
˙ |
5 mil Code 39 |
10 ~ 107 mm
|
|
| ˙ |
7.5 mil Code 39
|
13 ~ 132 mm
|
|
| ˙ |
5 mil MicroPDF417 |
10 ~ 112 mm
|
|
|
˙ |
5 mil Data Matrix |
21 ~ 66 mm
|
|
