Omni Directional Barcode Scanner - 2D OM7520J

Omni Directional Barcode Scanner - 2D OM7520J

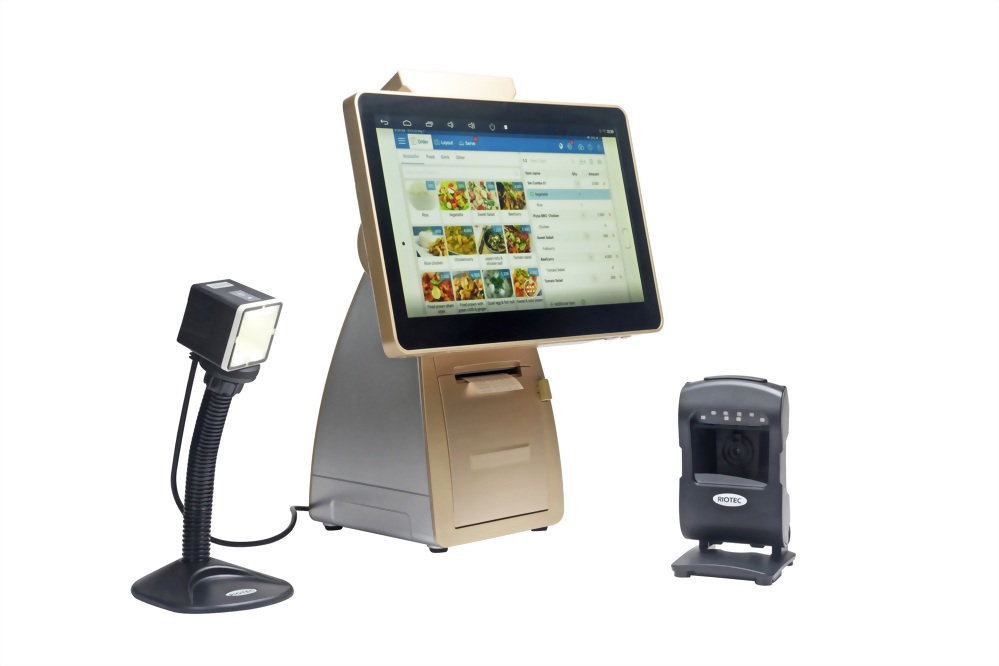

  • RIOTEC Desktop 2D barcode scanner OM7520J, QR barcode reader
  • RIOTEC QR barcode reader for E-payment

Model : OM7520J - 2D (RIOTEC OME7520J)

Q'ty :

Add To Inquiry

  • OM7520J, Desktop 2D Barcode Scanner
OM7520J, the best accessory for POS, is designed for Retail use.
* Easy installation: Plug & Play
* Can read 1D/2D barcodes on paper label as well on display
* Hand-free model: keep lines moving
* can be applied in Supermarket, Convenient Store
  • Specifications
  • Description

OM7520J Desktop 2D barcode scanner is designed for convenient store / supermarket use.

The OM7520J Desktop 2D Barcode Scanner is a high performance scanner ideal for retail Point-of-Sale (POS). With a digital imaging scan engine, the OM7520J is capable of reading both 1D and 2D barcodes on paper label as well as on mobile phones, tablets and computer display.

For busy retail environments, the OM7520J can be used in hands-free and handheld mode. Checkout personnel by simply presenting the barcode label or tag to the window of the scanner. Regardless of barcode label orientation, the OM7520J Desktop 2D barcode scanner will quickly read the barcode and assist in the rapid check out of your customers.

OM7520J Features:
* Adopt RIOTC 2D scan module
* Easy installation: Plug & Play

* CMOS Sensor: 640 x 480 pixels
* Can read 1D/2D codes on paper label as well on display
* Hand-free model: keep lines moving and minimize the waiting time
* can be applied in Supermarket, Convenient Store
* Interface: USB HID, USB-Serial, RS232
* Front case: Black or White


Scanners Specifications:

Model Name

OM7520J

Description

Desktop 2D barcode scanner

Engine

RIOTEC 2D engine

Scan Mode

Automatic (Presentation mode)

Performance Characteristics

˙

Light source

White LED

˙

Depth of field

 13 mil UPCA:220 mm

˙

Sensor

CMOS (640×480 pixels)

˙

Best resolution

1D (4 mil): Code 39
2D (6.67 mil):
PDF417

˙

Print contrast

≥ 30%

˙

Indicators

LED & Beeper

˙

Symbologies

1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar,
 Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, ISBN/ISSN, Code 93,
GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded
2D: PDF417, QR Code, Micro QR Code, Data Matrix, Aztec

˙

Interface

USB HID, USB Serial (by request), RS232 (by request)

Electrical Characteristics

˙

Input voltage

5 V/DC ± 5%

˙

Current - operating

190 mA

Physical Characteristics

˙

Dimension (L x W x H)


88 x 82 x 156 mm

˙

Weight

246 g± 5g

Environment

˙

Temperature-operation

-15°C to 55°C

˙

Temperature-storage

-30°C to 70°C

˙

Humidity-operation

5% to 95% relative humidity, non-condensing

˙

Ambient Light

0-100,000 lux (total darkness-bright sunlight)

Decode Zone    (DOF is measured at the office under 600 lux and by Standard barcode.  There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. )

˙

4 mil Code 39


0 mm ~ 50 mm

˙

5 mil Code 39


0 mm ~ 70 mm

˙

13 mil UPC-A


  0 mm ~ 220 mm

˙

20 mil QR code


  0 mm ~ 180 mm
