Mini Fixed-mount barcode scanner- 2D FS5101K
* It supports USB HID interface or USB Serial interface.
* USB HID: Plug & Play, No extra driver is needed.
* USB Serial: can send command to scanner, data will be sent to COM port.
* Small-size, Lightweight, designed for easy operation & installation
* Suitable for ATM, KIOSK, Price Checker, and other fields.

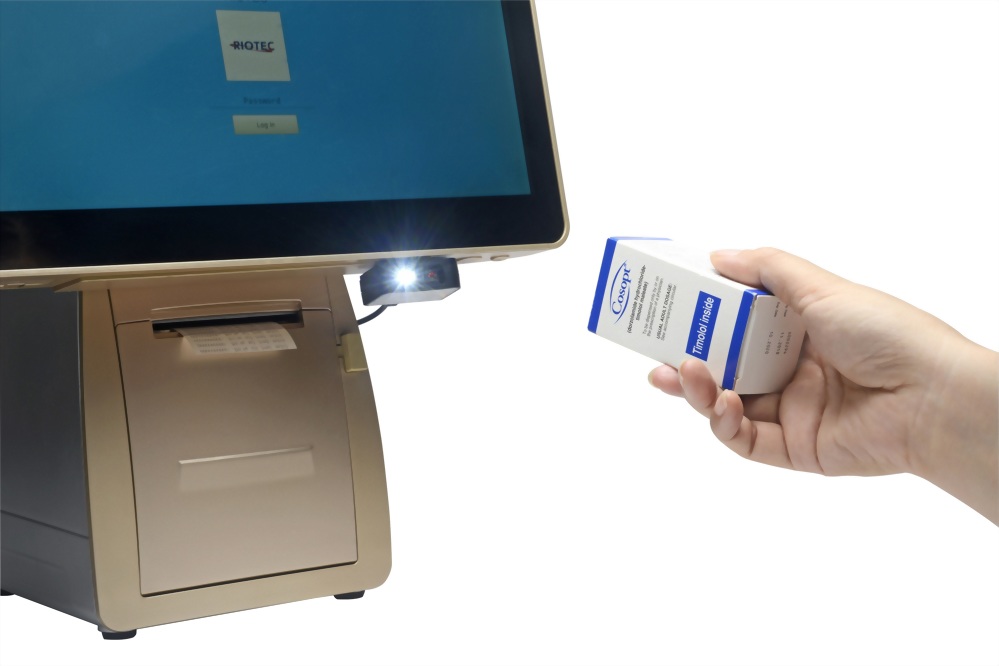

Mini Fixed-mount barcode scanner is designed for small ATM, KIOSK, Price checker.
Its compact-size design can be installed into small device easily. With presentation mode, FS5101K can scan the 1D / 2D codes automatically and helps users/operators to raise the working efficiency.
Product Advantages:
* Adopts RIOTEC 2D engine (Megapixel CMOS sensor)
* Excellent 1D / 2D scanning performance.
* Interface: USB HID or USB Serial
* Small-size, Lightweight, designed for easy operation & installation
* Applied in ATM, KIOSK, Price Checker, and other Self-service machine.

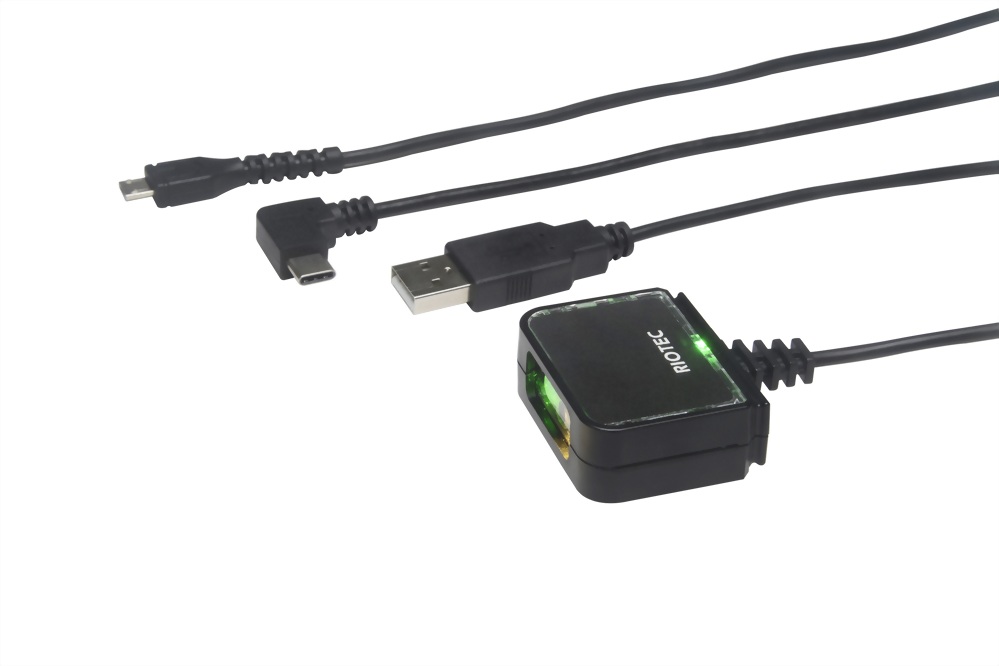

In order to meet different applications, we provide the 3 cable options to customers, including: USB-A cable, micro USB cable, and type-C cable.
|
Specifications : |
|||
|
Model Name |
FS5101K |
||
|
Engine |
|
2D engine |
|
|
Performance Characteristics |
|||
|
˙ |
Illumination Element |
|
White LED |
|
˙ |
Aiming LED |
|
650 nm |
|
˙ |
Depth of field |
|
13 mil EAN13: 330 mm |
|
˙ |
Sensor |
|
CMOS (1280×800 pixels) |
|
˙ |
Best resolution |
|
4 mil Code-39 |
|
˙ |
Reading angle |
|
Roll: 360 ° Pitch: 60 ° Skew : 70° |
|
˙ |
Print contrast |
|
30% or more |
|
˙ |
Interface |
|
USB HID ,USB
Serial |
|
˙ |
Symbologies |
|
1D: Codabar, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, |
|
Electrical Characteristics |
|||
|
˙ |
Input voltage |
|
5 V/DC ± 5% |
|
˙ |
Current - operating |
|
220 mA max |
|
Physical Characteristics |
|||
|
˙ |

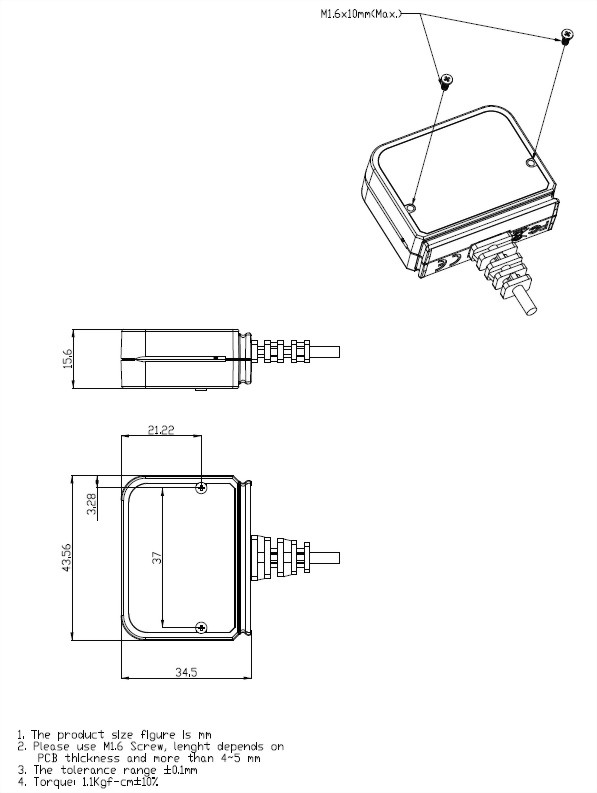

Dimension (L x W x H) |
|
34.5 x 43.6 x 15.6 mm (without cable) |
|
˙ |
Color of housing |
|
Black |
|
˙ |
Weight |
|
31g (with cable) |
|
Environment |
|||
|
˙ |
Temperature-operation |
|
0°C to 55°C |
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
˙ |
Humidity-operation |
|
Up to 95% relative humidity, non-condensing |
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||
|
˙ |
4 mil Code-39 |
|
50 mm - 110 mm |
|
˙ |
5 mil Code-39 |
|
50 mm - 140 mm |
|
˙ |
13 mil UPC-A |
|
50 mm - 330 mm |
|
˙ |
6.67 mil PDF 417 |
|
60 mm - 125 mm |
|
˙ |
20 mil QR Code |
|
40 mm - 260 mm |
