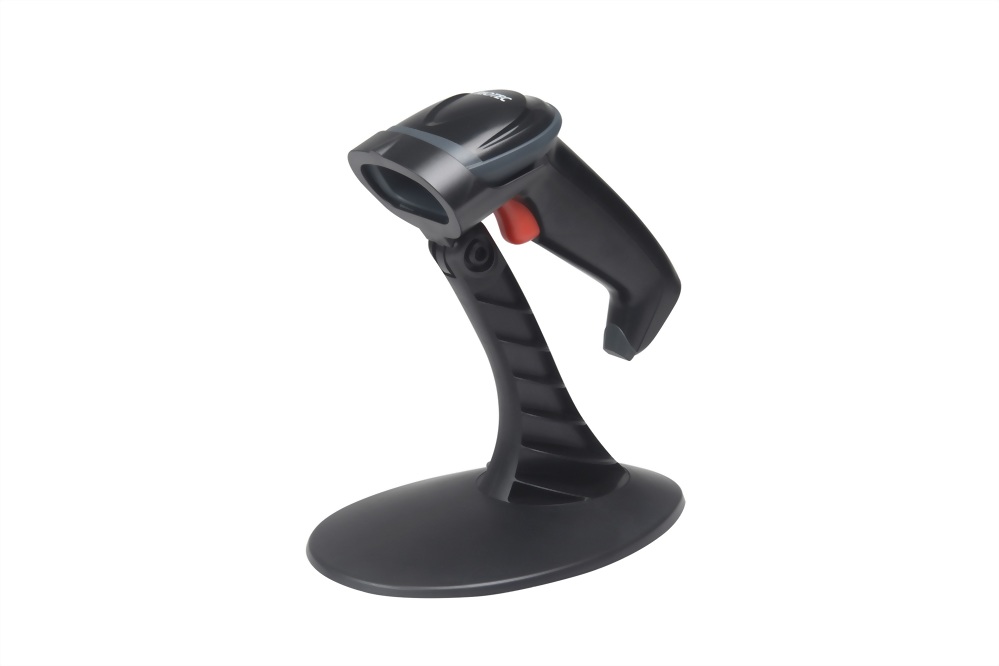

Handheld Barcode Scanner LS6400A series (1D laser)

Handheld Barcode Scanner LS6400A series (1D laser)

  • Handheld barcode scanner LS6400A

Model : LS6400A / LS6420A (1D Laser spec)

Q'ty :

Add To Inquiry

  • Handheld barcode scanner LS6400A
˙Built-in RIOTEC 1D laser engine.
˙With quicker decode rate.
˙Multi - selection for different usage.
˙High resolution up to 4 mil.
˙Multi-interfaces just by change cable.
˙Optional: auto-sensing and hands-free stand.
˙Suitable for Supermarket, POS (Point-of-sales),
inventory management or Document tracking.
  • Specifications

Specifications :


Model Name
LS6400A  /  LS6420A

Description
Cable / Auto-sensing

Engine
RIOTEC 1D laser engine

 Performance Characteristics
˙
Light Source
650 nm Laser Diode
˙
Depth of Field (13 mil)
200 mm
˙
scan rate

60 scan /sec

˙
Best Resolution
0.1 mm (4 mil) - Code 39
˙
Print Contrast

40% or more

˙
Scan Angle
 Yaw 65°, Rotation 30°, Pitch 55°
˙ Indicators
LED & beeper
˙
Interface
USB HID,USB Serial (by request) , K/B(by request) , RS232(by request)
˙
Auto-sensing (LS6320A)
Up to 150 mm
˙
Symbologies

Code39,Code39 Full ASCII,Code32,UPC-A,UPC-E,EAN-13,

EAN-8,Code93,Code128,Codabar,Interleaved 2 of 5,MSI,Code11 ,

Matrix 2 of 5,ISBN, ISSN, ITF 14,GS1 Databar,GS1-128


 Electrical Characteristics
˙
Input voltage
5 VDC ± 5%
˙
Current - operating
85mA max

 Physical Characteristics
˙
Dimension (L * W * H)
172 X 70 X 83 mm
˙
Weight
205 g +/- 5 g  (No cable)

 Environment

˙
Temperature-operation
0°C to 50°C
˙
Temperature-storage
-10°C to 60°C
˙
Humidity-operation
5% to 95% relative humidity, non-condensing
˙
Humidity-storage
5% to 95% relative humidity, non-condensing
˙
Ambient Light
Fluorescent Light 300 lux to Sun Light 30000 lux

 Decode Zone  ( There are +/- 1 cm tolerance )
˙ 4  mil Code39
30mm - 110 mm
˙
5  mil Code39
30mm - 130 mm
˙
13 mil EAN 13
30mm - 200 mm
