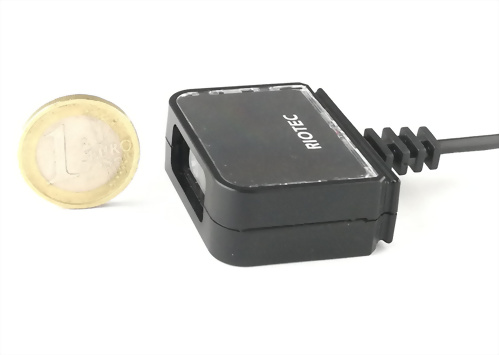

Mini Fixed Mount Barcode Scanner - 2D FS5108K
* Adopts Opticon 2D engine
* Excellent 1D / 2D scanning performance.
* Interface: USB HID or USB Serial
* Small-size, Lightweight
* Cable options: USB cable, micro USB cable, type-C cable
FS5108K- Mini Fixed-mount 2D Barcode Scanner
Mini Fixed-mount barcode scanner is designed for small ATM, KIOSK, Price checker.
Its compact-size design can be installed into device easily. With presentation mode, FS5108K can scan the 1D / 2D codes automatically and helps users to raise the working efficiency.
Product Advantages:
* Adopts Opticon MDI-4100 2D engine
* Excellent 1D / 2D scanning performance.
* Interface: USB HID or USB Serial
* Small-size, Lightweight, designed for easy operation & installation
* Applied in ATM, KIOSK, Price Checker, and other Self-service machine.
In order to meet different applications, we provide the 3 cable options to customers, including: USB cable, micro USB cable, and type-C cable.
|
|
Specifications : |
|
|
|
Model Name |
FS5108K
Mini Fixed-Mount 2D Barcode Scanner |
|
|
Engine |
Opticon MDI-4100 2D Engine
|
|
|
Performance Characteristics | |
|
˙ |
Illumination Element
|
White LED
|
|
˙ |
Aiming LED |
525 nm (Green)
|
|
˙ |
Scan speed |
100 frame /sec
|
|
˙ |
Depth of field
|
(13 mil) UPC-A：250 mm
|
|
˙ |
Sensor |
CMOS (640×480 pixels)
|
|
˙ |
Best resolution |
1D (CODE39): 5 mil
2D (PDF417): 6.7 mil |
|
˙ |
Reading angle |
Tilt: 360° / Pitch ±65° / Skew ±65°
|
|
˙ |
Print contrast |
≥ 20%
|
|
˙ |
Interface
|
USB HID ,USB Serial
|
|
˙ |
Symbologies |
1D: UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, |
|
|
Electrical Characteristics
|
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
|
˙ |
Current - operating |
390 mA
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension (L * W * H) |
43.6 X 34.5 X 15.6 mm (without cable)
|
|
˙ |
Color of housing |
Black
|
|
˙ |
Weight |
26g (with cable)
|
|
|
Environment |
|
|
˙
|
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity-operation |
5% to 90% relative humidity, non-condensing
|
|
˙
|
Ambient Light
|
0-100,000 lux
|
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
|
˙ |
10 mil Code 39 |
65 ~ 210 mm
|
| ˙ |
13 mil UPC-A |
65 ~ 250 mm
|
| ˙ |
6.7 mil PDF417 |
60 ~ 135 mm
|
|
˙ |
10 mil PDF417 |
55 ~ 185 mm
|
| ˙ |
6.7 mil QR Code |
75 ~ 95 mm
|
|
˙
|
15 mil QR Code
|
30 ~ 215 mm
|
|
˙ |
10 mil Data Matrix
|
60 ~ 150 mm
|
|
˙
|
7.9 mil Code 128
|
80 ~ 165 mm
|
