Mini Barcode Scanner - 1D DC9253A
DC9253A features: .
* Adopts Honeywell N4313 Laser Engine
* Plug & Play, No need extra driver.
* Interface: USB HID or USB-Serial
* Easy operation by Touch Trigger
* Lightweight, ergonomically design
* With Scan Holder, DC9253A becomes AndroScan Mobile Barcode Scanner
* Adopts Honeywell N4313 Laser Engine
* Plug & Play, No need extra driver.
* Interface: USB HID or USB-Serial
* Easy operation by Touch Trigger
* Lightweight, ergonomically design
* With Scan Holder, DC9253A becomes AndroScan Mobile Barcode Scanner

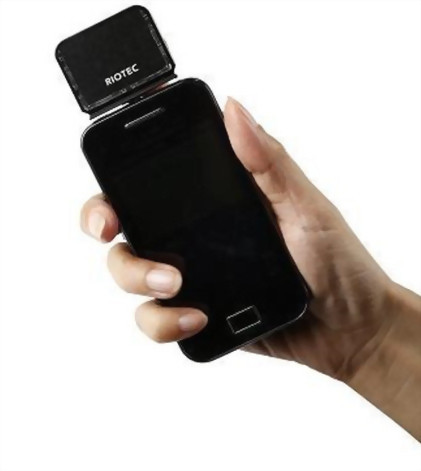

DC9253A- 1D Mini Barcode Scanner with micro USB connector
Mini Barcode Scanner is designed for Android OTG phone use. With different APPs on smartphone, this solution can be applied in Warehouse (inventory management), Logistic, Ticket Checker use.
DC9253A features:
* Adopts Honeywell N4313 Laser Engine
* Plug & Play, No need extra driver.
* Interface: USB HID or USB-Serial
* Easy operation by Touch Trigger
* Lightweight, ergonomically design
* With Scan Holder, DC9253A becomes AndroScan Mobile Barcode Scanner
Option:
* Scan Holder: H92P (with Li-Ion battery), H92N (without battery)
* Interface: USB HID or USB-Serial
Mini Barcode Scanner is designed for Android OTG phone use. With different APPs on smartphone, this solution can be applied in Warehouse (inventory management), Logistic, Ticket Checker use.
DC9253A features:
* Adopts Honeywell N4313 Laser Engine
* Plug & Play, No need extra driver.
* Interface: USB HID or USB-Serial
* Easy operation by Touch Trigger
* Lightweight, ergonomically design
* With Scan Holder, DC9253A becomes AndroScan Mobile Barcode Scanner
Option:
* Scan Holder: H92P (with Li-Ion battery), H92N (without battery)
* Interface: USB HID or USB-Serial
|
|
Specifications : |
|
|
|
Model Name Description |
DC9253A
1D Mini Barcode Scanner |
|
|
Engine |
Honeywell N4313 Laser Engine
|
|
|
Performance Characteristics | |
|
˙ |
Light Source |
650 nm Laser Diode
|
|
˙ |
Depth of Field |
1D (40 mil Code 39): 734 mm |
|
˙ |
Scan Speed
|
108±16 scans /sec
|
|
˙ |
Best Resolution |
1D (4 mil) Code 39 |
|
˙ |
Scan Angle |
Tilt : ±35° / Pitch : ±60° / Skew : ±65°
|
|
˙ |
Interface |
Micro USB ( USB_HID ,USB Serial )
|
|
˙ |
Print Contrast |
≥ 20%
|
|
˙ |
Symbologies |
Codabar, Code11, Code128, Code32, Code39, Code93, EAN/JAN-13, EAN/JAN-8, GS1 DataBar Expanded , GS1 DataBar Limited , GS1 DataBar Omnidirectional, GS1-128, interleaved 2 of 5, ISBT 128, Matix 2 of 5, MSI, NEC 2 of 5, Plessy Codes, Postal Codes, Straight 2 of 5 IATA, Straight 2 of 5 Industrial, Telepen, Troptic Code ,UPC-A, UPC-E0, China Post |
|
|
Electrical Characteristics |
|
|
˙ |
Input voltage |
Smart Phone / Tablet Power
|
|
˙ |
Current - operating |
＜ 200 mA
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension (L * W * H) |
43 X 40 X 16 mm
|
|
˙ |
Color of housing |
Black
|
|
˙ |
Weight |
20 g
|
|
|
Environment |
|
|
˙ |
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing
|
|
˙ |
Ambient Light |
100,000 lux (Direct Sunlight) |
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
| ˙ |
4 mil Code 39 |
117 ~ 141 mm
|
|
˙ |
5 mil Code 39 |
106 ~ 190 mm
|
|
˙ |
7.5 mil Code 39 |
92 ~ 271 mm
|
|
˙ |
10 mil Code 39 |
66 ~ 371 mm
|
|
˙ |
15 mil Code 39 |
45 ~ 547 mm
|
|
˙ |
40 mil Code 39 |
96 ~ 734 mm
|
|
˙ |
13 mil 100% UPC |
52 ~ 457 mm
|
